MCNP – Rack Mount Connector Network Panel Optokon Premium

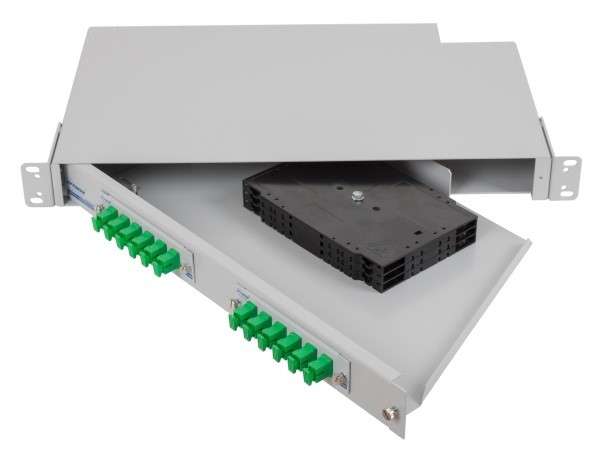

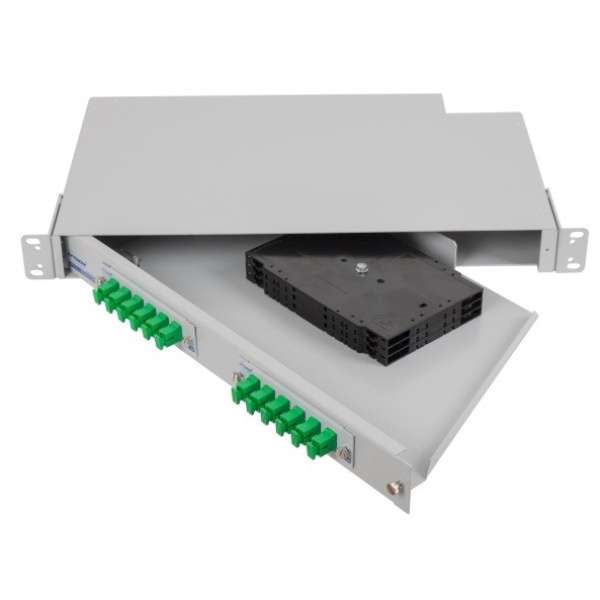

The MCNP Connector Network Panel is a cost-effective, rack-mountable ODF (Optical Distribution Frame) designed for splicing pre-terminated pigtails, pre-terminated cables, and field-installable connectors. The MCNP is made from a lightweight and durable aluminum alloy, providing user-friendly handling during installation and operation, as well as low shipping costs. Strain relief for incoming cables is located at the back of the unit. The swivel shelf can be equipped with either a splice tray holder or a bend radius protection, which guides, stores, and organizes excess cable. This prevents damage to the fibers before they are terminated in connectors. The MCNP is ideal for installations with limited space.
Properties:
- Splicing and terminating optical cables in one box
- Swivel shelf facilitates the routing of connectors and cables
- Extended version available (3 adapter panels per 1U)
- Version designed for angled adapter installation
- Supports up to 48 fibers in 1 height unit
- Splice tray holder allows for cable termination using pigtail splicing
- Made from lightweight aluminum alloy
- Protection class: IP20
- cable strain relief and grounding provisions
- Accepts most common connector types in the industry
- FTTH-application – includes microtube holder
- Earthquake tested in accordance with ASME standards
- Aluminum alloy material – lightweight and low shipping costs
- Durable powder coating in light gray (RAL 7038, RAL 9006), with an additional color option: ADAPTA DX-7182-XW, a finish based on saturated polyester resins for a stainless-steel appearance
- Operating temperature range: -40 to +85 °C
