OFDU-TS Rack Mount Splice and Termination Cabinet Optokon Premium

OFDU-TS Rack Mount Splice and Termination Cabinet Optokon Premium

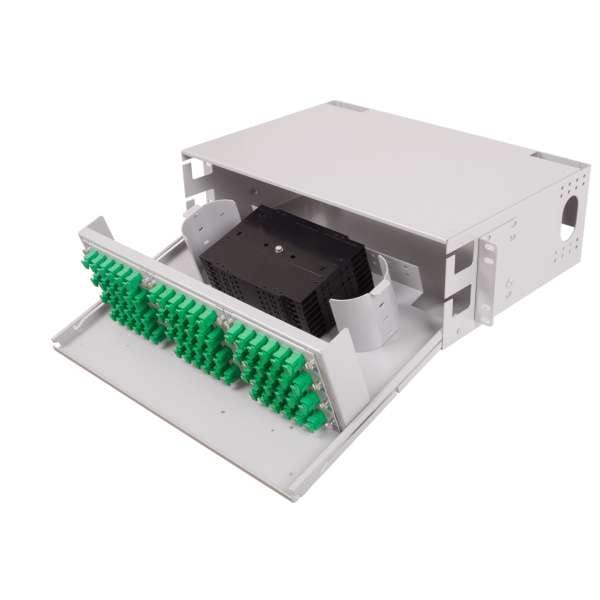

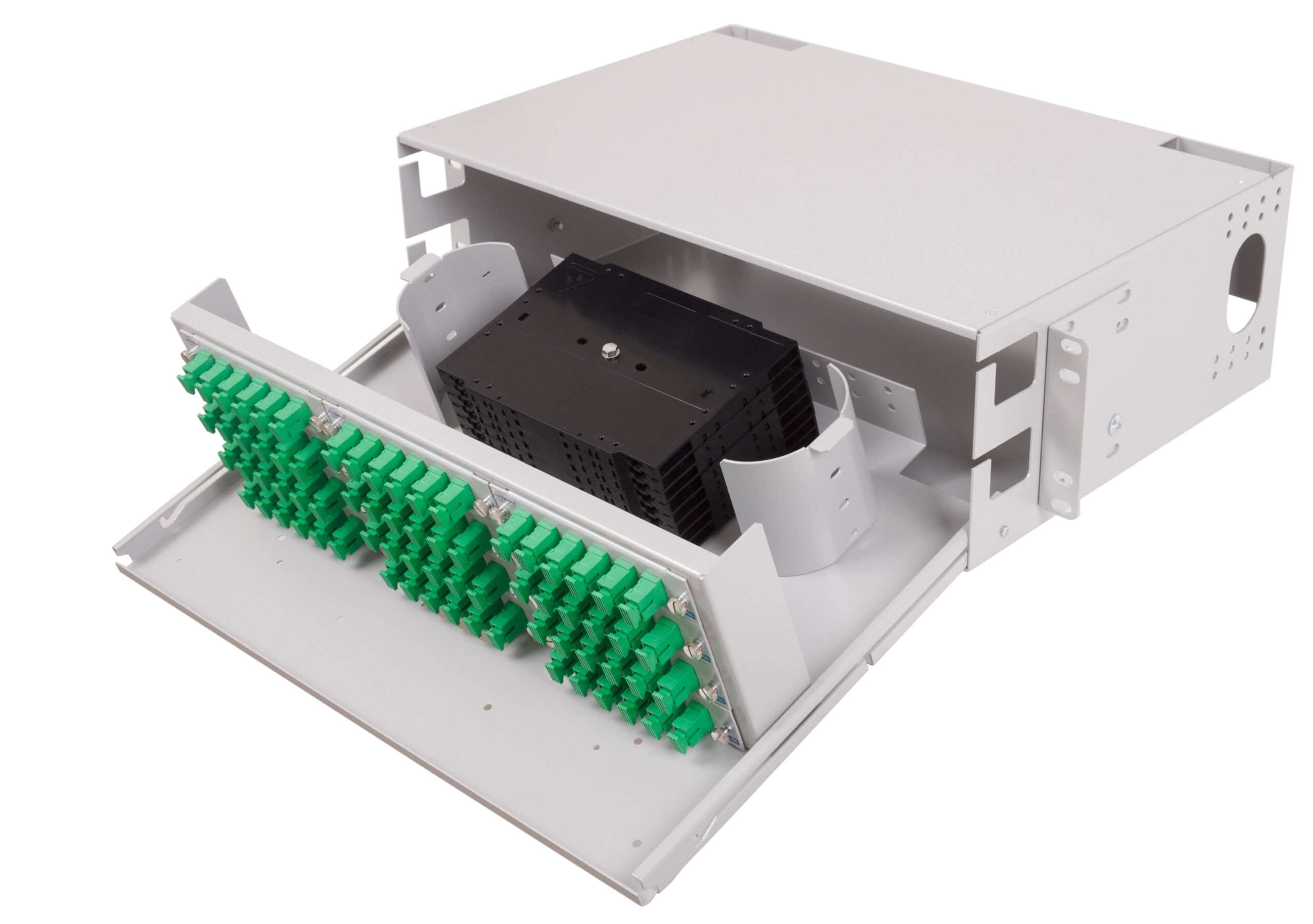

The OFDU-TS cabinet is based on universal optical distribution frames. The uniform modular system allows for easy reconfiguration and can be expanded according to the operator’s needs. The OFDU-TS offers splicing and termination in a convenient housing unit. It terminates up to 192 fibers in a 3U distribution frame and can accommodate up to 12 snap-in coupling fields or pre-wired cassettes. The extendable and foldable shelf provides unrestricted access to the splice area and termination fields from the front, back, and top. Various types of splice cassettes can be used.

Properties:

• Splicing and termination in one cabinet
• Extendable and foldable shelf
• Aluminum alloy material – lightweight and low shipping costs
• Up to 192 fiber terminations
• Splicing in individual splice cassettes, with access to each splice cassette
• Removable top and rear cover allow unrestricted access from the front, back, and top
• Suitable for FTTH use – microtube holder included
• Pre-wired CAPM cassettes include terminated fiber pigtails and adapters
• Options available with lockable or secured door
• Durable powder coating in light gray (RAL 7038, RAL 9006)
