OFDU-S Rack Mount Splice Cabinet Cabinet Optokon Premium

OFDU-S Rack Mount Splice Cabinet Optokon Premium

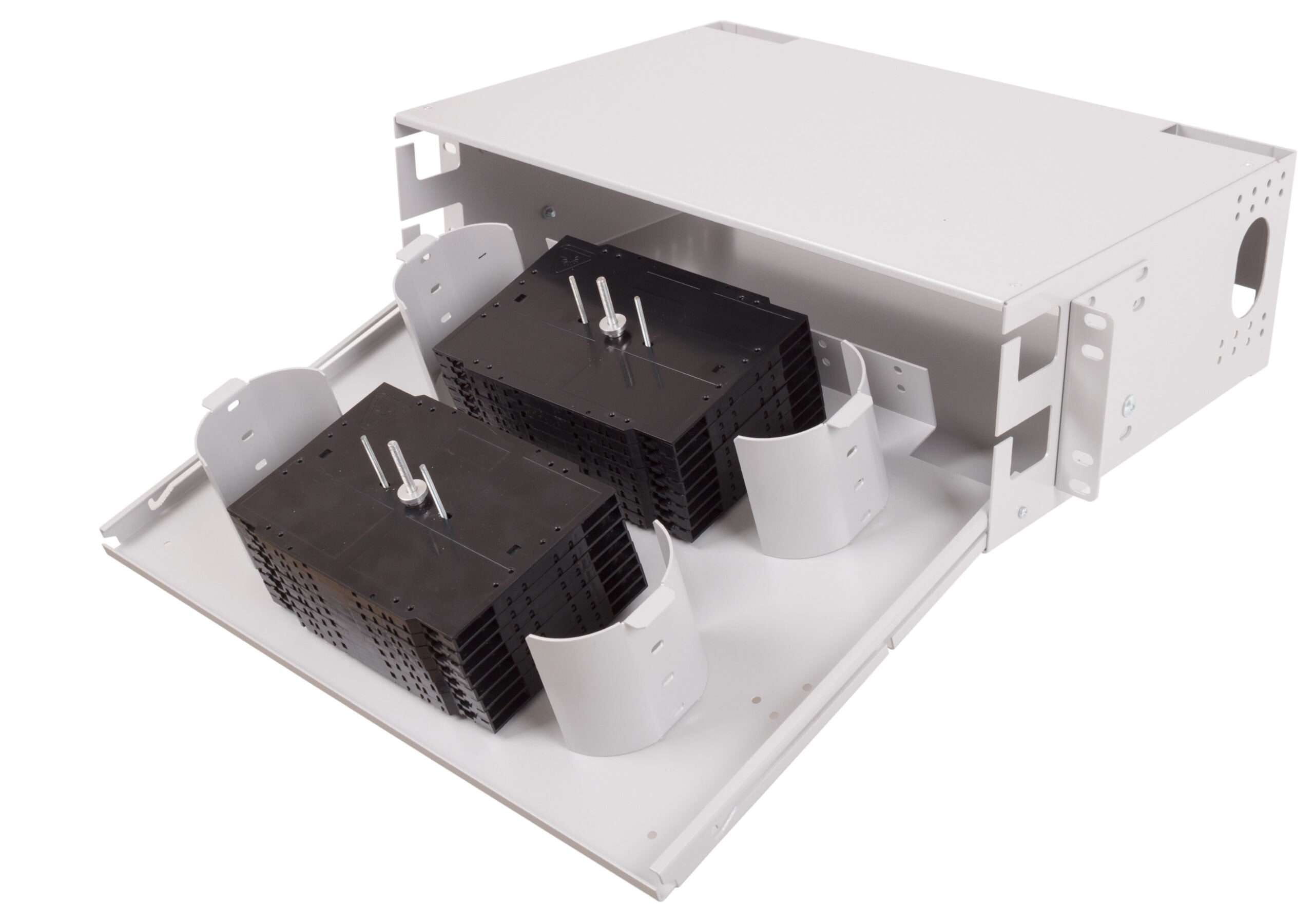

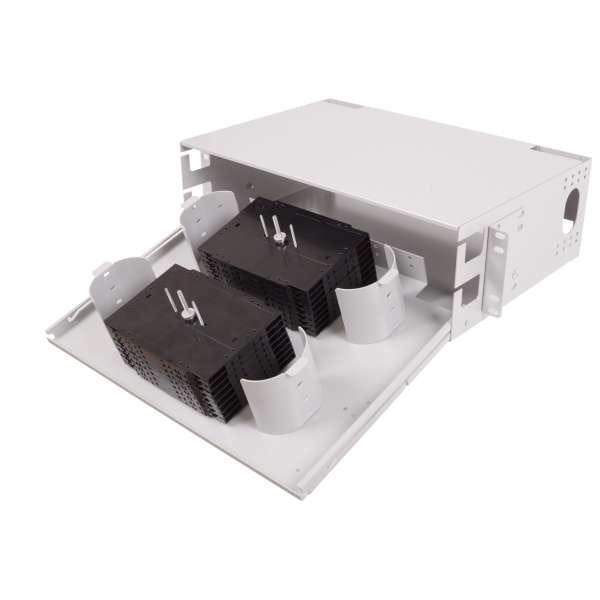

The OFDU-S cabinet is based on universal optical distribution frames. The uniform modular system allows for easy reconfiguration and can be expanded according to the operator’s requirements. The OFDU-S enables splicing, storing, and protecting up to 288 (576) fiber splices in individually accessible cassettes. The extendable and foldable shelf provides unrestricted access to the splice area from the front, back, and top. Various types of splice cassettes can be used.

Properties:

• Splicing of up to 288 (576) fibers in a cabinet
• Extendable and foldable shelf
• Aluminum material – lightweight and low shipping costs
• Bend radius protection allows for handling and rearrangement of cable slack
• Suitable for standard splice cassettes
• Removable top provides unrestricted access to splice cassette and fiber connections
• Cable strain relief hardware included
• Durable powder coating – RAL 9006
