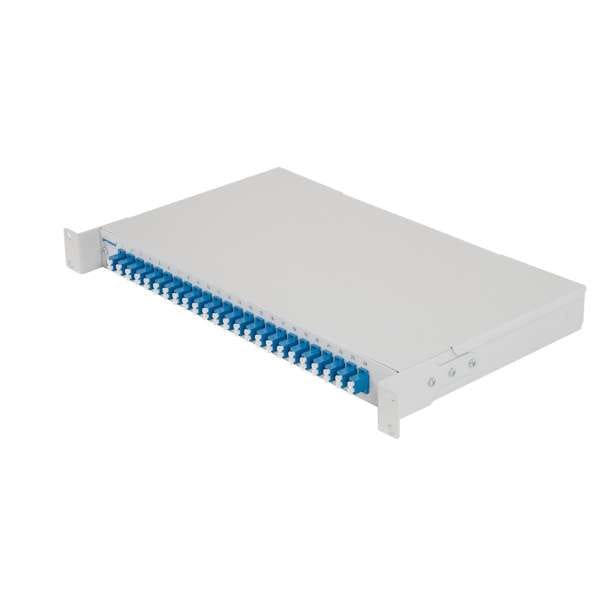

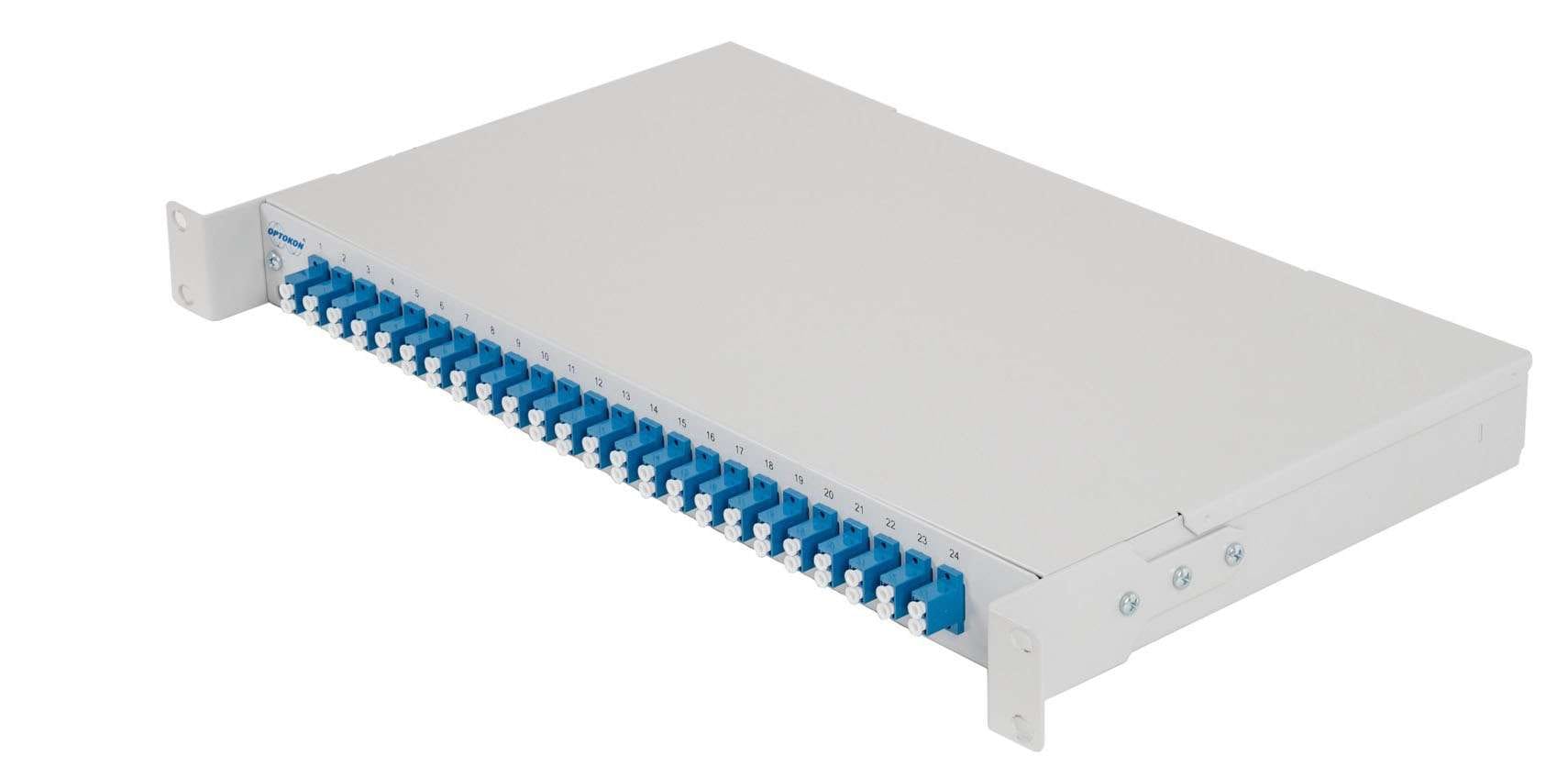

ZMPJ – Rack mount fixed cabinet Optokon Premium

ZMPJ – Rack mount fixed cabinet Optokon Premium

The ZMPJ fixed enclosure provides a compact, cost-effective solution for terminating fiber optic cables. The ZMPJ series is ideally suited for rack mounting in tight spaces such as equipment cabinets, where rack space is limited. The modular system allows for splicing and terminating up to 96 fibers in a rack height of 1U. The ZMPJ enclosure is made of aluminum alloy 5754, offering excellent corrosion resistance and very high strength.

Properties:

• FTTH application – holder for microducts included
• Designed for microduct termination
• Sturdy shelf

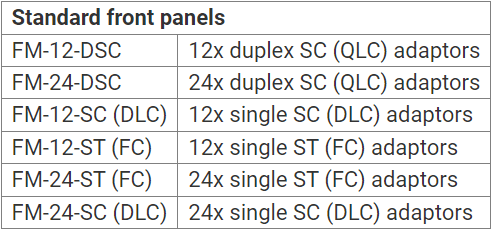

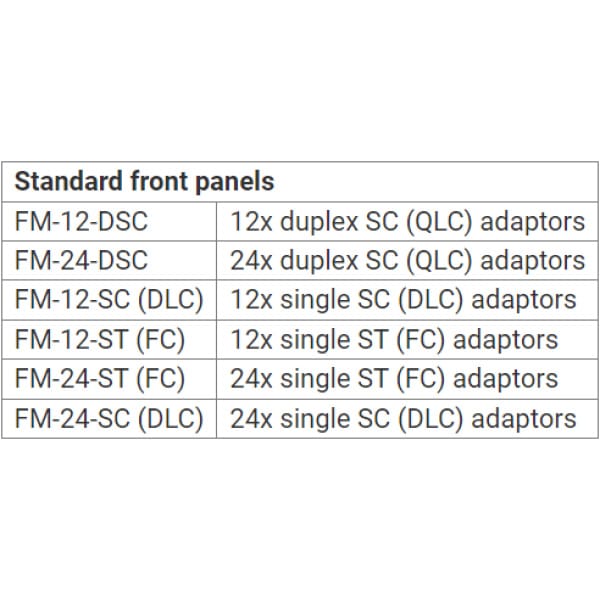

• Replaceable front panel with various coupling adapters
• Coupling adapters mounted on the front panel

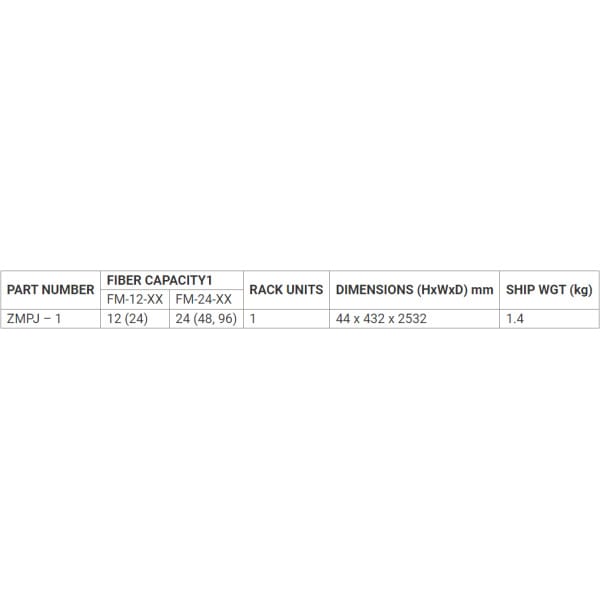

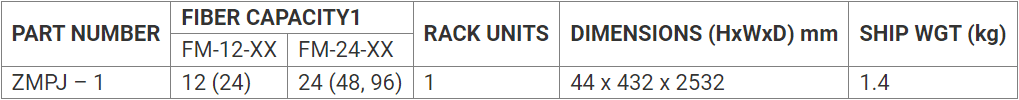

• Accommodates up to 96 fibers in 1 rack unit
• Removable top cover provides unrestricted access
• cable strain relief and grounding provisions
• Accepts most common connector types in the industry
• Durable powder coating in light gray (RAL 7038, RAL 9006)
• Material: Aluminum alloy 5754 (lightweight, excellent corrosion resistance, and very high strength)
