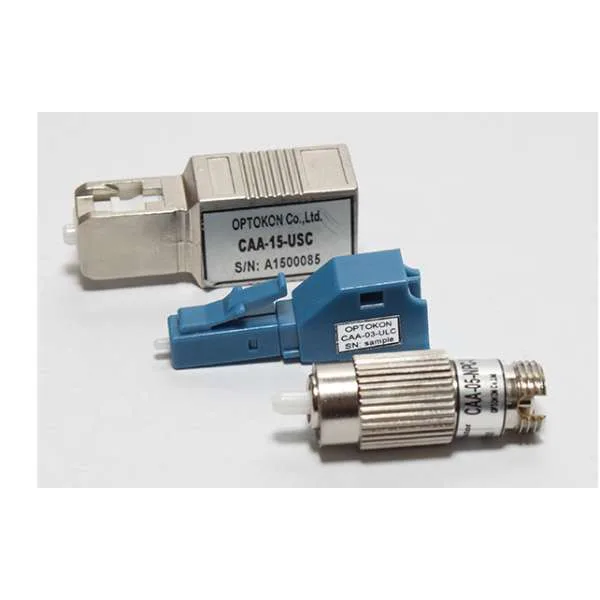

Plug-Type (Male Female) Attenuators CAA series – Singlemode Optokon Premium
The plug-type single-mode attenuators are used directly at the ends of fiber optic jumpers before installation in adapters. These attenuators provide a fixed, precise attenuation level and feature excellent return loss. Due to their low wavelength dependence, they are suitable for use in WDM and DWDM transmission systems. The CAA series attenuators are available with UPC or APC polish for SC, FC, DIN, and LC connector types, and UPC for ST and MU connectors.

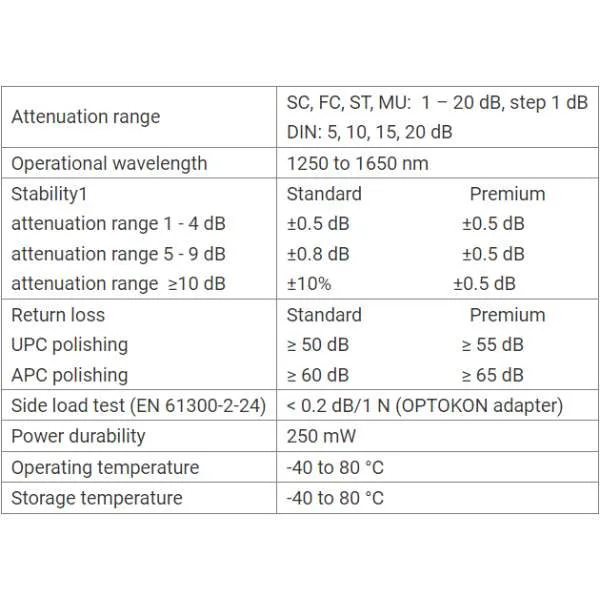

Properties:
- Plug/Adapter Connector Type
- Precise attenuation, high power endurance
- Large attenuation range, 1 dB step
- Return flow loss: > UPC 50 dB, > APC 60 dB
- Broadband design with low ripple for operation at wavelengths of 1250 to 1650 nm
