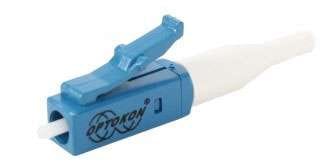

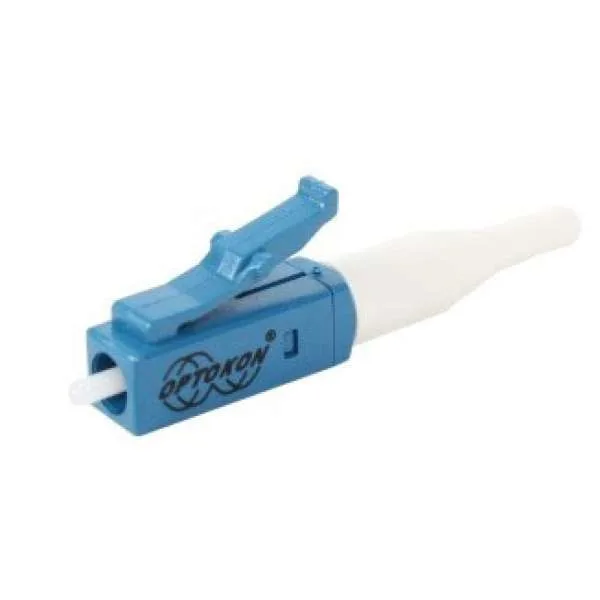

LC Connector Optokon Premium
The innovative LC design features a form factor that is only half the size of current industry standards, with simple functionalities redefining user-friendliness. The LC connector is manufactured to meet the specifications of EIA/TIA 568A, FOCIS 10, IEC 61754-20, and CENELEC for optical performance and compatibility. The LC duplex fits into the standard cutout of the SC single adapter and utilizes the industry’s smallest diameter cable jacket. The connector design and boot size allow for cable connections with diameters of 2 mm and 3 mm, as well as fiber types with a 0.9 mm diameter. In addition to the standard boot color, black and red options are also available.
Properties:
- half the size of current industry standards
- increases panel density – enables duplex connections in 50% less space
- duplex fits RJ-45 footprint
- available in SM and MM versions with standard, ultra, and angled (APC) polish
- user-friendly audible lock indicates a correct connection
- available in simplex and duplex versions
- pull-resistant 1.6 mm simplex mini cable and 1.8 x 3.6 mm duplex mini zip cable
