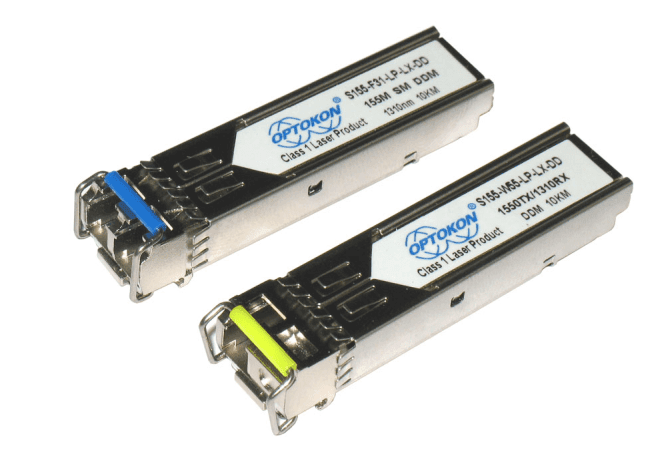

SFP Transceivers – 155Mbps Optokon Premium
The S155 series consists of hot-pluggable 3.3V Small Form Factor (SFP) duplex, bidirectional, and CWDM transceiver modules specifically designed for high-speed communication applications requiring speeds of up to 155 Mbps. The transceivers comply with Fast Ethernet, ATM, and SONET OC-3/SDH STM-1 standards. The 155 Mbps transceivers are equipped with an LC receptacle, which is compatible with the industry-standard LC connectors. All SFP transceivers are equipped with Digital Diagnostics Monitoring (DDM) functionality.
Properties
- Up to 155 Mbit/s bidirectional data connections
- Hot-pluggable SFP footprint
- Low power consumption (typically 1.05 W)
- Compact connector assembly
- All-metal housing for reduced electromagnetic interference (EMI)
- RoHS compliant and lead-free
- Single +3.3V power supply
- 155 Megabit transfer rate
