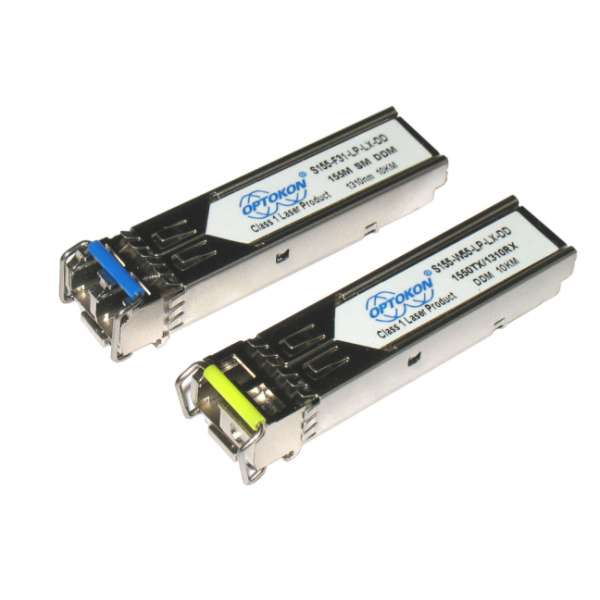

SFP Transceivers – 1.25 Gbps Optokon Premium
The 1.25 Gbps series consists of hot-pluggable Small Form Factor (SFP) duplex, bidirectional, and CWDM transceiver modules specifically designed for high-speed communication applications requiring speeds of up to 1.25 Gbps. The transceivers are equipped with LC receptacles, which are compatible with the industry-standard LC connectors. All SFP transceivers are equipped with the Digital Diagnostics Monitoring (DDM) feature.
Properties
- Up to 1.25 Gbit/s bidirectional data connections
- Hot-pluggable SFP footprint
- Low power consumption (typically 1.05 W)
- Compact connector assembly
- All-metal housing for reduced electromagnetic interference (EMI)
- RoHS compliant and lead-free
- Single +3.3V power supply
- 1.25 Gigabit transfer rate
