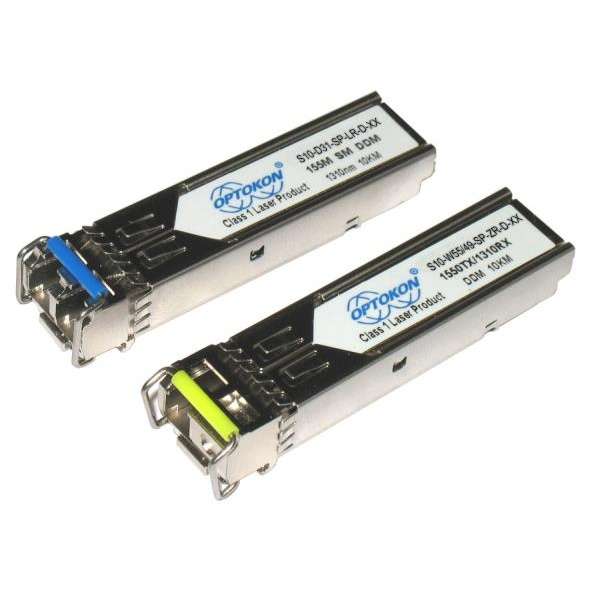

SFP+ Transceivers – 10 Gbps Optokon Premium
The OPTOKON transceivers are compatible with IEEE 802.3ae and the 10G MSA (Multi-Source Agreement). This upgrade and the reliability benefits from hot-pluggable capability are designed for both single-mode and multi-mode optical fibers, providing cost efficiency and high performance. The S10-D55, a 1550 nm cooled EML laser-based 10 Gigabit SFP+ transceiver, is designed for transmitting and receiving optical data over single-mode fibers for connection lengths of up to 100 km.
Properties
- Up to 10 Gbps bidirectional data links
- Hot-pluggable SFP footprint
- Low power consumption (typically 1.05 W)
- Compact connector assembly
- All-metal housing for reduced electromagnetic interference (EMI)
- RoHS compliant and lead-free
- Single +3.3V power supply
- 10 Gigabit transmission speed
