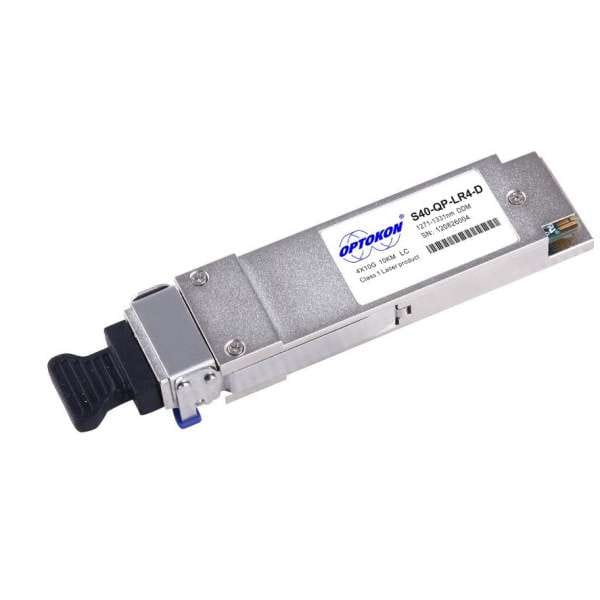

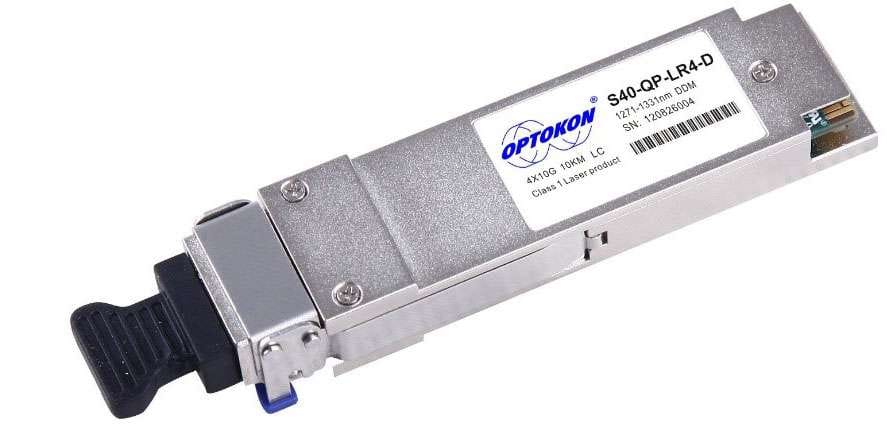

QSFP CWDM Transceivers S40-QP-LR4-D Optokon Premium
The S40-QP-LR4-10-D is designed for operation over a singlemode fiber optic system with 4x10G CWDM channels in the 1310 nm band and connections of up to 10 km. The module converts 4 input channels with 10 Gb/s electrical data into 4 optical CWDM signals and multiplexes them into a single channel for optical transmission at 40 Gb/s. Conversely, the module demultiplexes a 40 Gb/s optical input on the receiver side into 4 CWDM channel signals and converts them into 4 electrical output channels.
Properties
- High channel capacity: 40 Gbit/s per module
- CWDM 1271, 1291, 1311, 1331 nm wavelengths
- Up to 11.1 Gbit/s data rate per channel
- Maximum connection length: 10 km
- Electrically hot-pluggable
- Digital diagnostic monitoring interface
- Compatible with QSFP+ MSA with LC connector
- Operating temperature range of the housing: 0 °C to 70 °C
- Power output < 1.5 W
