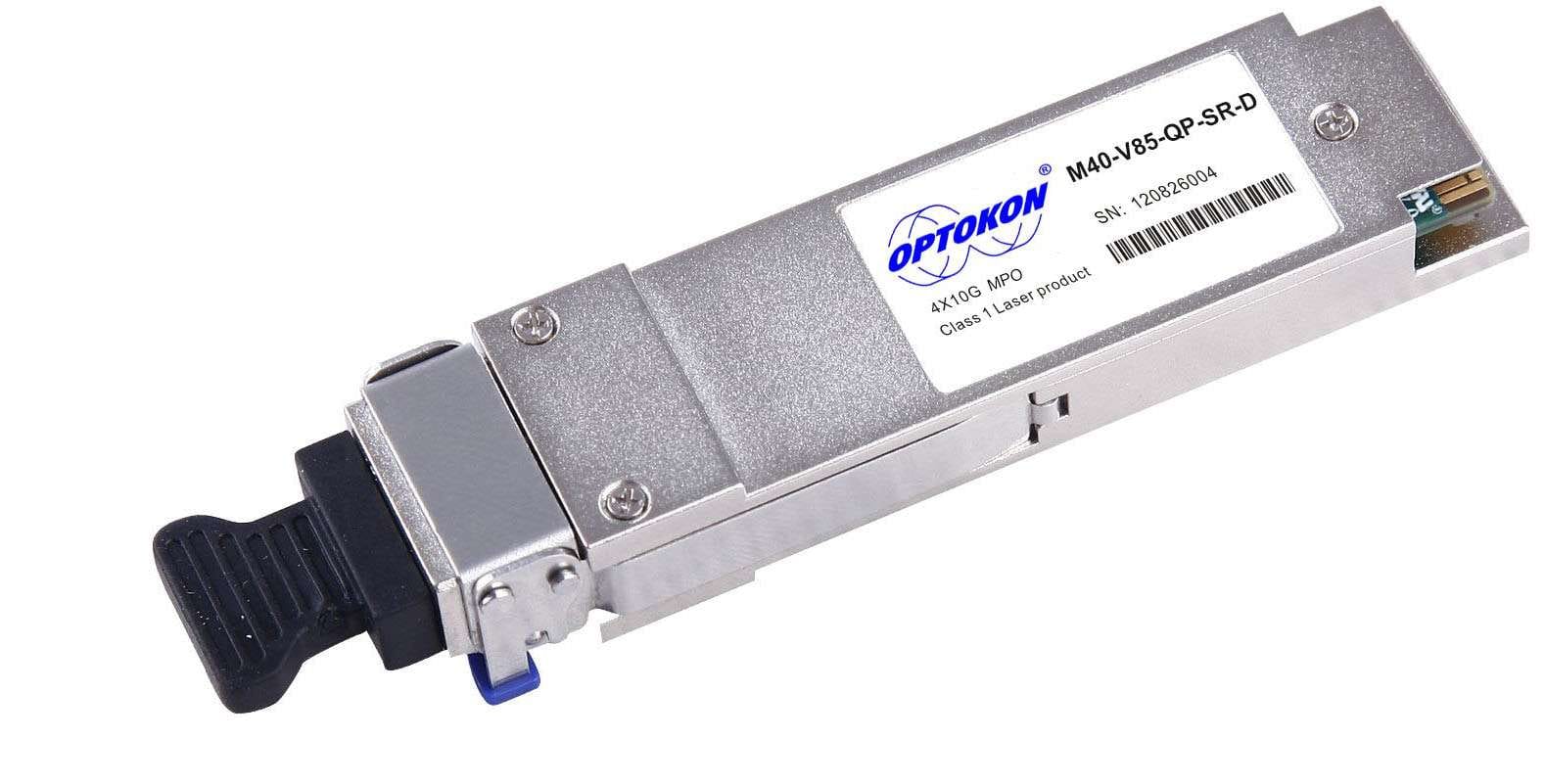

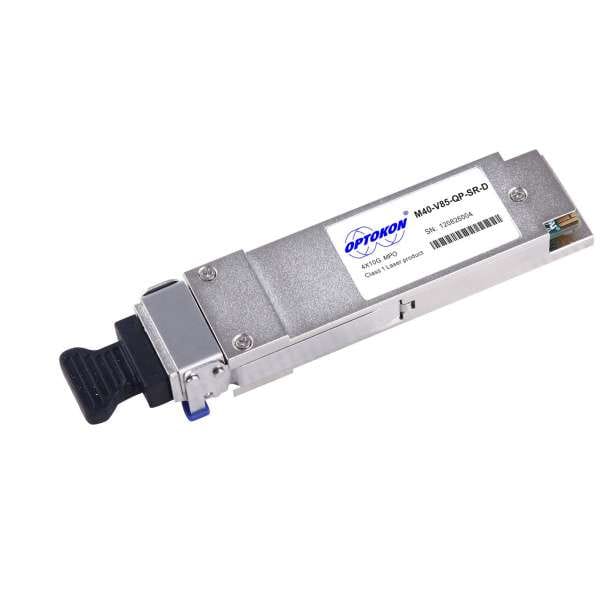

QSFP Transceivers M40-V85-QP-SR4-XX-D Optokon Premium

QSFP Transceivers M40-V85-QP-SR4-XX-D Optokon Premium

  The M40-V85-QP-SR4-XX-D is designed for operation over multimode fiber systems with 4x10G channels at 850 nm. It is compatible with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. The optical transmitter section of the transceiver includes a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer, laser drivers, diagnostic monitors, and control and bias blocks. For module control, the control interface features a two-wire serial interface for clock and data signals.

Properties

• High channel capacity: 40 Gbit/s per module
• Up to 11.1 Gbit/s data rate per channel

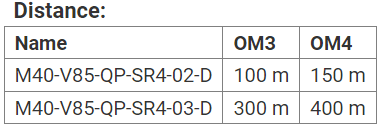

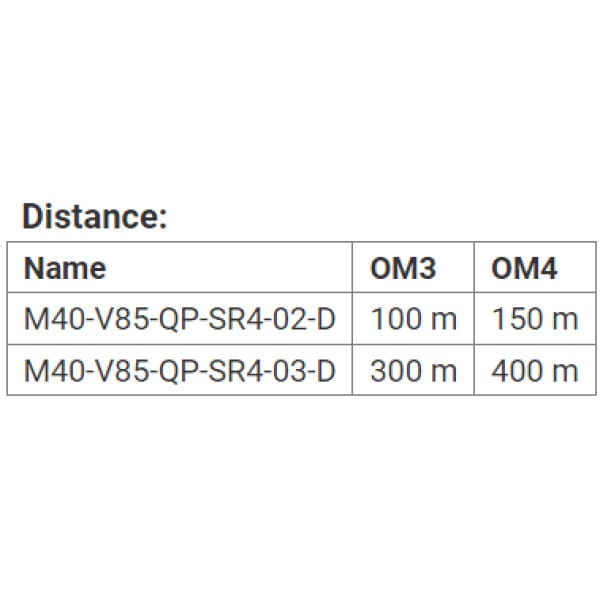

• Maximum Connection Length of 100 m for OM3 connections
• Maximum Connection Length of 150 m for OM4 connections
• Highly reliable 850 nm VCSEL Technology
• Electrically hot-pluggable
• Digital Diagnostics: SFF-8436 compliant
• Operating temperature range of the housing: 0 °C to 70 °C
• Power loss < 0.7 W
