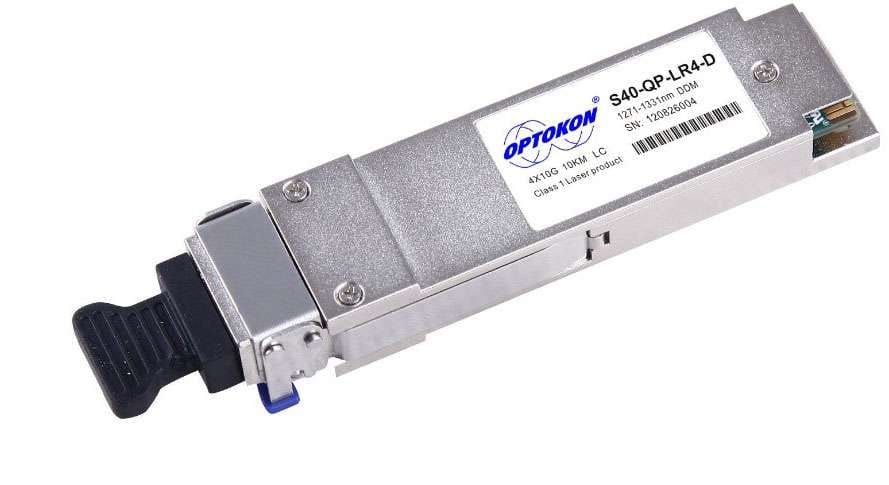

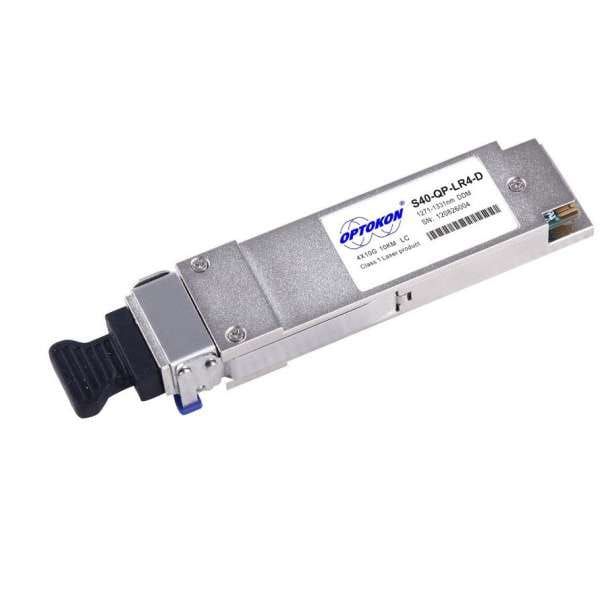

QSFP CWDM Transceivers S40-QP-LR4-XX-D Optokon Premium

QSFP CWDM Transceivers S40-QP-LR4-XX-D Optokon Premium

  The S40-QP-LR4-XX-D is designed for operation over a single-mode fiber optic system with 4x10G CWDM channels in the 1310 band and connections of up to 30 km. The module converts 4 input channels with 10 Gb/s electrical data into 4 optical CWDM signals and multiplexes them into a single channel for optical transmission at 40 Gb/s. Conversely, the module demultiplexes a 40 Gb/s optical input on the receiver side into 4 CWDM channel signals and converts them into 4 electrical output channels.

Properties

• High channel capacity: 40 Gbit/s per module

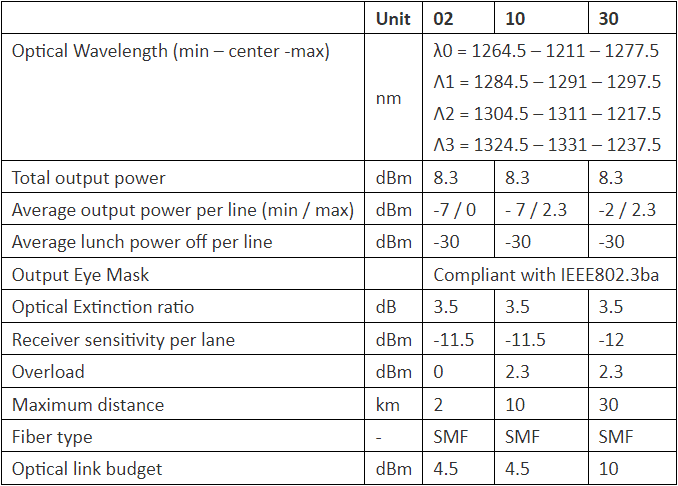

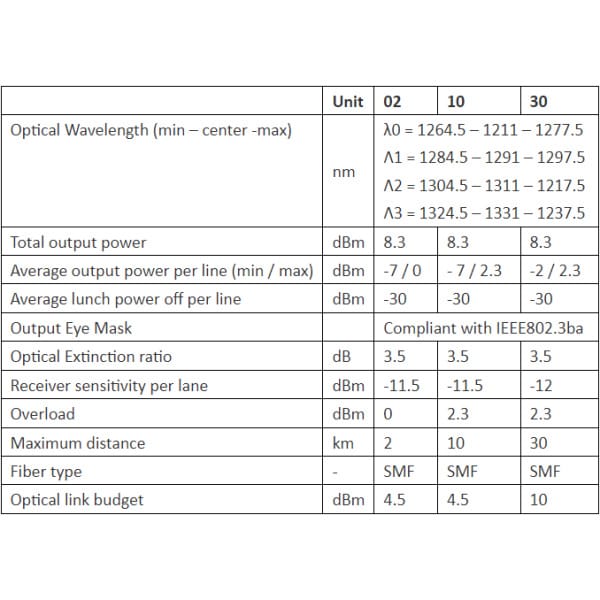

• CWDM 1271, 1291, 1311, 1331 nm wavelengths
• Up to 11.1 Gbit/s data rate per channel

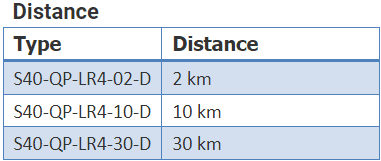

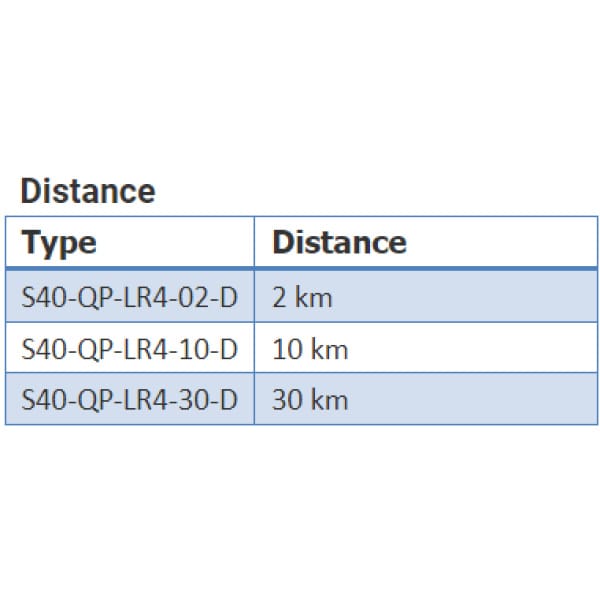

• Connection lengths: 2, 10, and 30 km
• Electrically hot-pluggable
• Digital diagnostic monitoring interface
• Compatible with QSFP+ MSA with LC connector
• Operating temperature range of the housing: 0 °C to 70 °C
• Power output < 2,5 W (3,5 W for 30 km distance)
