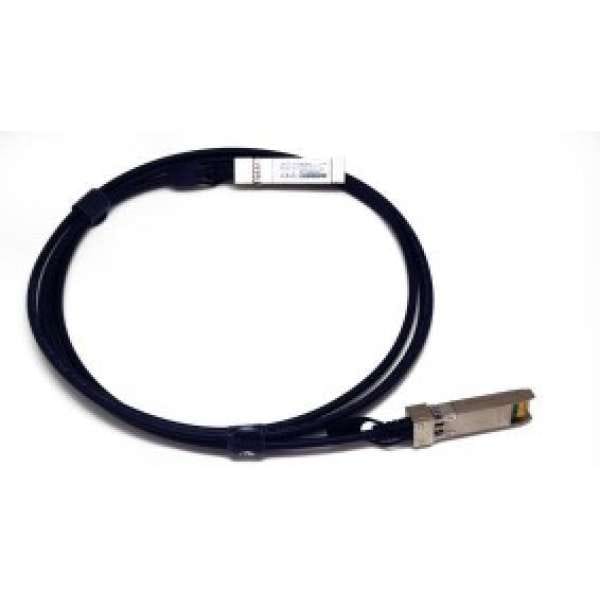

S25G-SP28-DAC – 25G SFP28 Direct Attach Passive Cable Optokon Premium

S25G-SP28-DAC – 25G SFP28 Direct Attach Passive Cable Optokon Premium

  The S25G-SP28-DAC passive copper cable SFP28 offers a fast and cost-effective solution for 25 Gbps Ethernet connectivity, addressing the growing demand for higher bandwidth in data centers. The S25G-SP28-DAC cable consists of a single high-speed copper pair that can operate at speeds of up to 25 Gbps. It complies with the IEEE P802.3 Ethernet standard and the SFP28 standard SFF-8402. Each SFP28 connector contains an EEPROM that stores product information accessible by the host system.

Properties

• Data rate of up to 25 Gbps
• Hot-pluggable
• Supports IEEE 802.3
• Copper connection length of up to 5 meters
• Single +3.3V power supply
• Operating case temperature: 0～70 °C
• SFF-8402 compliant, tested in end-to-end system
• RoHS compatible
