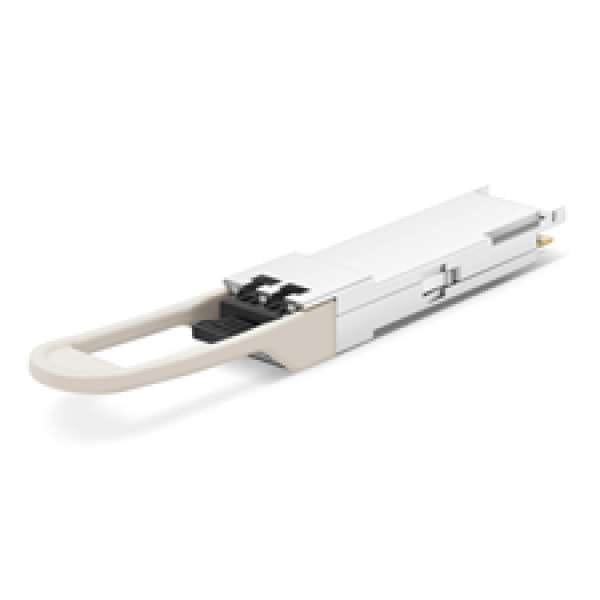

QSFP28 Transceivers – 100Gbps ZR4 Optokon Premium
The OPTOKON 100G QSFP28 ZR4 optical transceiver consolidates the receiver and transmitter paths into a single module. On the transmitter side, four lanes of serial data streams are restored, retimed, and distributed to four laser drivers. These drivers control 4 EML lasers with center wavelengths of 1296 nm, 1300 nm, 1305 nm, and 1309 nm. The resulting optical signals are then combined and transmitted over single-mode fiber via a standard LC connector. For reception, the four lanes of optical data streams are optically separated using the integrated demultiplexer. Each stream is then processed by an SOA+PIN and a transimpedance amplifier, followed by retiming. This module features a hot-pluggable electrical interface, minimal power consumption, and a 2-wire serial interface. This product complies with the QSFP28 Multi-Source Agreement (MSA) regarding its form factor, optical/electrical connections, and digital diagnostic interface. Additionally, it meets the IEEE 802.3ba standards.
Properties
- Conforms to QSFP28-Standard SFF-8636 Rev 2.10a
- Supports line rates of up to 103.125 Gbit/s
- Integrated LAN WDM EML TOSA / SOA + PIN ROSA, supports distances of up to 80 km with FEC
- Digital diagnostic monitoring interface
- Duplex LC fiber optic socket
- No external reference clock
- Electrically hot-pluggable
- corresponds LC connector
- Operating temperature range of the housing: 0 °C to 70 °C
- Power output < 5.5 W
