MB2 WE-Box

MB2 WE-Box

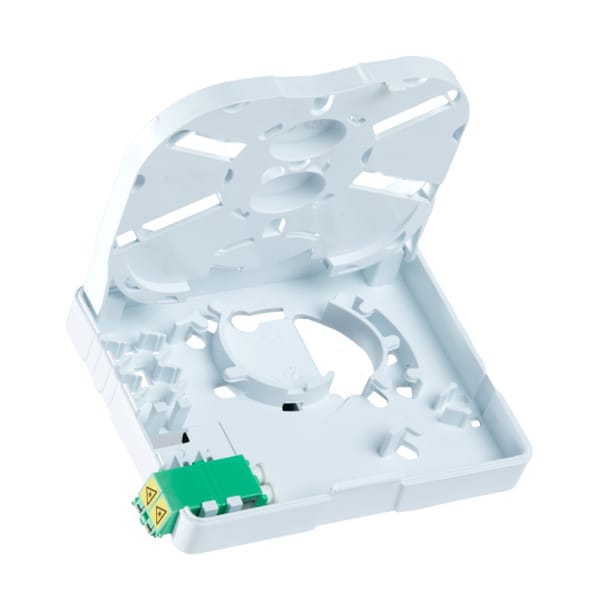

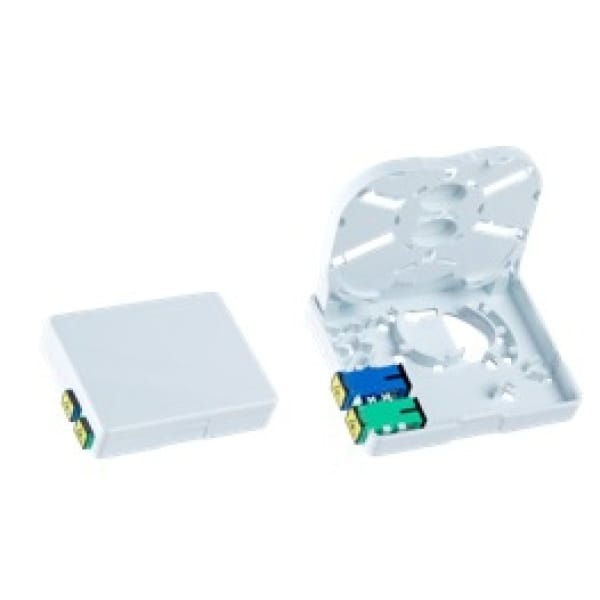

  The MB2-WE connection box is designed for residential and office applications, accommodating up to 2 SC-terminated fiber optic connections (or 4 LC pigtails). The box features mounting holes for attachment over standard flush-mounted boxes with a diameter of 55mm. Unless otherwise specified, the MB2 box is supplied with 2 SC/APC adapters with integrated protective covers.

Additional Configurations

• MB2 with 1 x LC/APC-Duplex Adapter
• MB2 with 2 x LC/APC-Duplex Adapter
• MB2 with 1 x SC/APC Adapter
• MB2 with 2 x SC/APC Adapter

Features

• Compact and Attractive Design for Wall Mounting (Indoor)
• possible cable entries: Back, top, bottom, left, right
• Cutouts for Mounting Above the Flush-Mounted Box / Hollow Wall Box
• integrated Clips for DIN Rail Mounting (DIN/TH35)
• swiveling splice cassette for 6 Heat Shrinks
• removable Cover with Labeling Field
• UL94-V0 Material, IP31

Specifications

• Dimensions: 100 x 80 x 22 mm (H/W/D)
• Material: ABS PC
• Color: Polar white
• Capacity: 6 splices (heat shrink) and 4 adapters
• Number of Cable Entries: 5 (back, top, bottom, left, right)
• Ambient Temperature: -25°C to +55°C
