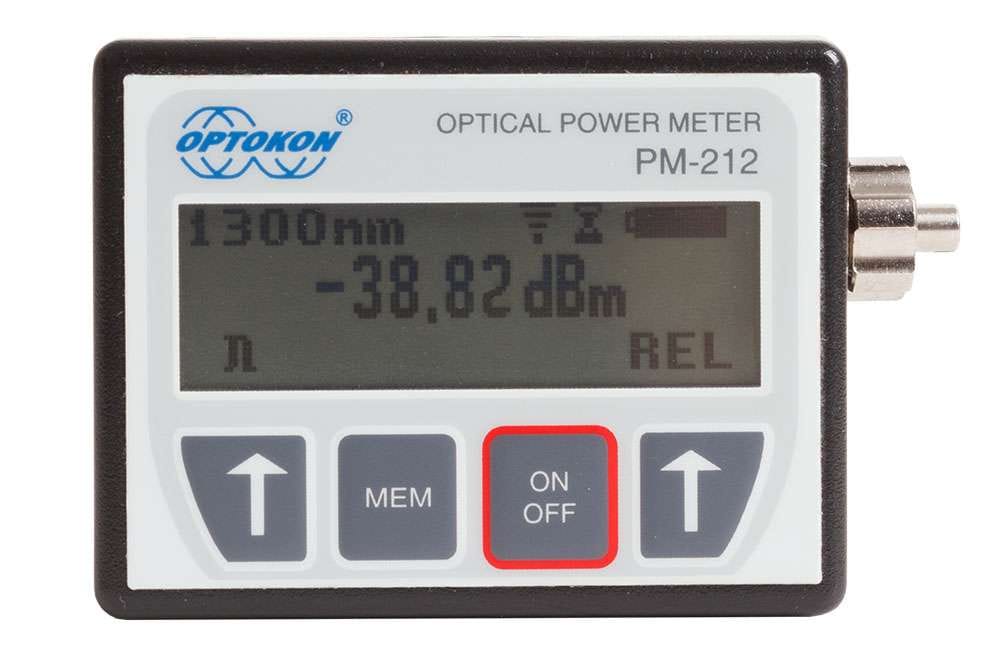

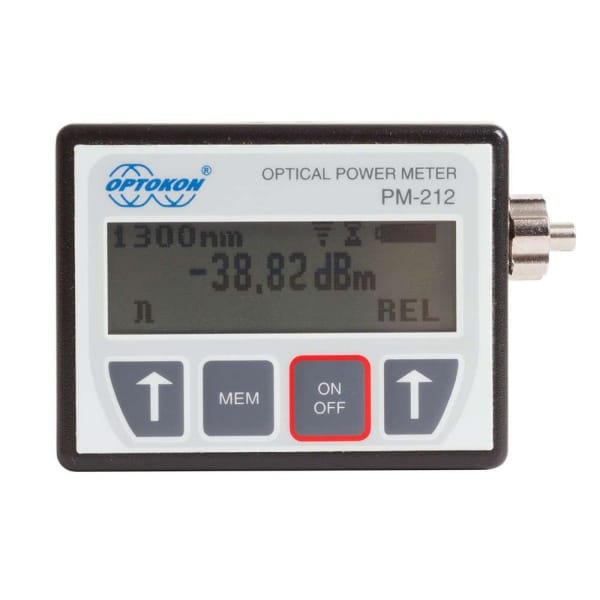

Optokon PM-212 Pocket optical power meter – USB probe

Optokon PM-212 Pocket optical power meter – USB probe

The optical power meter PM 212 is a small, pocket-sized, and cost-effective device. Its compact size does not prevent the optical meter from meeting all technical requirements for field equipment. The tester can be used as a handheld power meter or as a USB probe, part of a test workstation. It can be positioned in rack-mounted ODFs with the display facing up or sideways. The rechargeable Li-Poly battery ensures long operating time with a minimum lifespan of 2 years. The device can store 100 measurements, which can be uploaded to a PC and managed using the SmartProtocol software or the Data Exporter.

Properties:

• Portable power meter
• USB probe – accessory for test workstation
• Compact size, lightweight
• SM and MM fiber testing, six operating wavelengths
• Absolute and relative optical power measurement
• Internal two-level memory, capacity for up to 100 measurements
• SmartProtocol SW – Create test reports
• Data Exporter – Data download in Excel format
• USB port for:
  • USB Probe – Full control via simple commands
  • Charging the battery
  • Uploading data to the PC – Firmware upgrade
• Built-in rechargeable Li-Poly battery, battery status indicator, automatic shutdown
