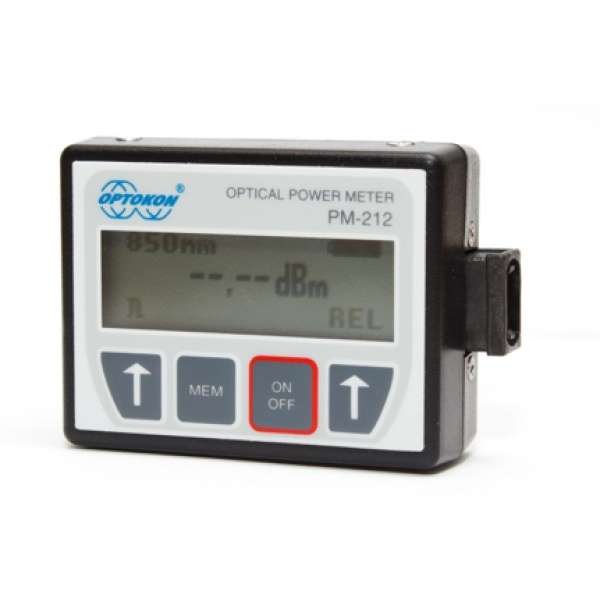

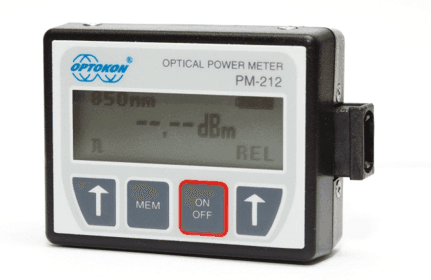

Optokon PM-212-MPO Pocket optical power meter USB probe

Optokon PM-212-MPO Pocket optical power meter USB probe

The optical power meter PM-212-MPO is a small, pocket-sized, and cost-effective product. Its compact size does not prevent the optical meter from meeting all the technical requirements for field equipment. The tester can be used as a pocket power meter or as a USB probe, serving as part of a test workstation. The device can be easily carried in a pocket or attached to a belt.
There are two versions for simultaneous measurements: 12/24 multi-fiber MPO/MTP connectors 16/32 multi-fiber MPO/MTP connectors The rechargeable Li-Pol battery ensures long operating time with a minimum lifespan of 2 years. The device can store up to 100 measurements, which can be uploaded to a PC and managed using the SmartProtocol software or the Data Exporter.

Properties:

• Two Functions:
  • Portable power meter
  • USB probe – accessory for test workstation
• MPO/MTP connector: 12/24 or 16/32 fibers
• Multimode applications
• Compact size, lightweight
• Absolute and relative optical power measurement
• Internal two-tier memory structure
• Capacity for up to 100 measurements
• SmartProtocol SW – Create test reports
• Data Exporter – Data download in Excel format
• USB port for:
  • USB probe – complete control via simple commands for battery charging
  • Data upload to PC
  • Firmware upgrade
• Built-in rechargeable Li-Poly battery
• Automatic shutdown, battery status indicator
