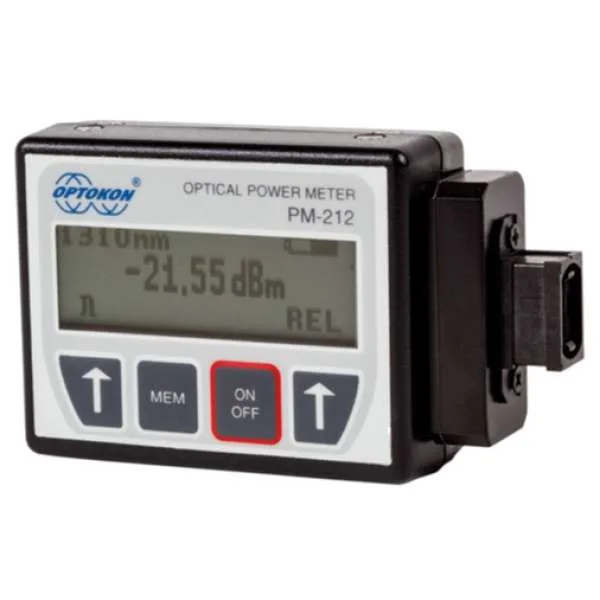

Optokon PM-212-MTP-GE Multifiber optical power meter
The optical power meter PM-212-MTP-GE is designed for measuring absolute or relative optical power in optical networks with multifiber MTP/MPO connectors. By using the large-area Ge photodiode, the tester can measure the total optical power level of all fibers from MTP/MPO connectors across a wide wavelength range. There are two versions for simultaneous measurements: 12/24 multifiber MPO/MTP connectors 16/32 multifiber MPO/MTP connectors The memory capacity allows for storing and uploading up to 100 measurements, including storage position or fiber number, wavelength, absolute or relative value, and insertion loss. The PC evaluation software SmartProtocol supports memory downloads, report generation, and data export for downloading data into an Excel spreadsheet. The rechargeable battery ensures long-term operation with a minimum lifespan of 2 years. The batteries can be charged via a USB port or an external AC/DC adapter. The controlled charging process ensures optimal battery status and extended operating time.
Properties:
- Simple Measurement of Multifiber Connectors
- MTP/MPO Input Connector: 12/24 or 16/32 fibers
- Two Functions:
- Portable power meter
- USB Probe – Accessory for Testing Workplace
- Large scale Ge-Photodetector
- Firmware Upgrade via USB
- Displayed Units: dBm, dB, mW
- High-capacity memory
- SmartProtocol-PC-Software
- Memory Download, Report Generation
- Data Exporter-PC-Software
- Data Download in Excel Spreadsheet
- Battery Charging via USB Port
- Battery status indicator
- Absolute and relative optical power measurement
- Powered by Rechargeable Li-Pol Battery
