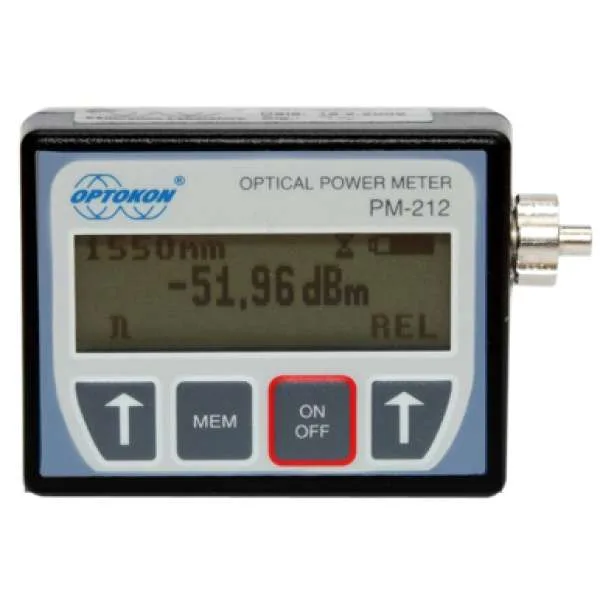

Optokon PM-212-CWDM Pocket optical power meter USB probe

Optokon PM-212-CWDM Pocket optical power meter USB probe

The optical power meter PM-212-CWDM is a small, pocket-sized, and cost-effective device. Despite its compact size, the optical power meter meets all technical requirements for field equipment. The tester can be used as a pocket power meter or as a USB probe as part of a test workstation. The device can easily be carried in a pocket or on a belt. It allows for simultaneous measurement of the entire CWDM band with 2 additional wavelengths for MM applications (850 and 1300 nm) and 1625 nm for SM. The rechargeable Li-Poly battery ensures long operating time with a minimum lifespan of 2 years. The device can store 100 measurements, which can be uploaded to a PC and managed with the SmartProtocol software or the Data Exporter.

Properties:

• Two Functions:
  • Portable power meter
  • USB probe – accessory for test workstation
• 18 channels CWDM + 850, 1300, and 1625 nm
• Compact size, lightweight
• Absolute and relative optical power measurement
• Internal two-tier memory structure
• Capacity for up to 100 measurements
• SmartProtocol SW – Create test reports
• Data Exporter – Data download in Excel format
• USB port for:
  • USB probe – complete control via simple commands for battery charging
  • Data upload to PC
  • Firmware upgrade
• Built-in rechargeable Li-Poly battery
• Automatic shutdown
• Battery status indicator
