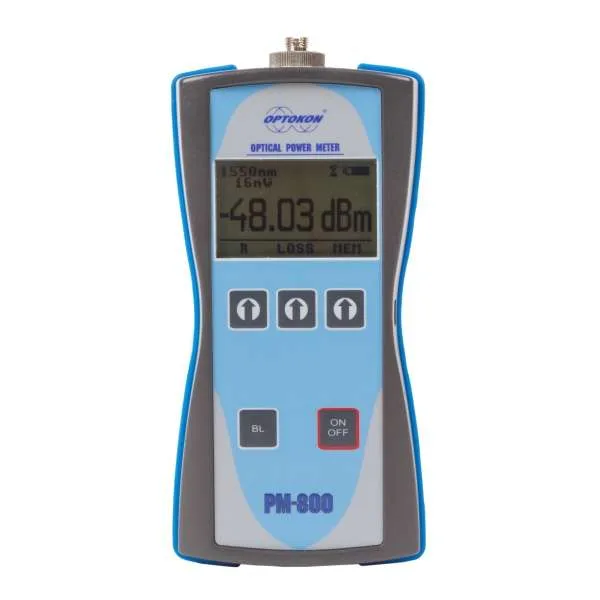

Optokon PM-800 Optical Power Meter
The PM-800 is part of OPTOKON’s testing equipment designed for thorough fiber optic line diagnostics. It is intended for measuring absolute or relative optical power in optical networks. It can be used as a portable power meter or as a USB probe. The interchangeable adapter design allows for easy swapping of optical connectors according to actual needs. Automatic Wavelength Detection The “Automatic Wavelength Detection” (AWD) mode allows the use of the OPTOKON light source and power meter without manually switching the measured wavelength, reducing the possibility of erroneous measurements. Cycle Mode The cycle mode enables the device to automatically switch between available wavelengths.
Properties:
- Standalone-Leistungsmesser
- InGaAs or Si Photodetector
- CW, 270 Hz, 1 kHz, 2 kHz Modulation
- Automatic Wavelength Detection (AWD)
- Changeable Input Adapters
- Absolute and relative optical power measurement
- Cycle Mode
- USB Probe Mode
- High-Capacity Two-Stage Memory
