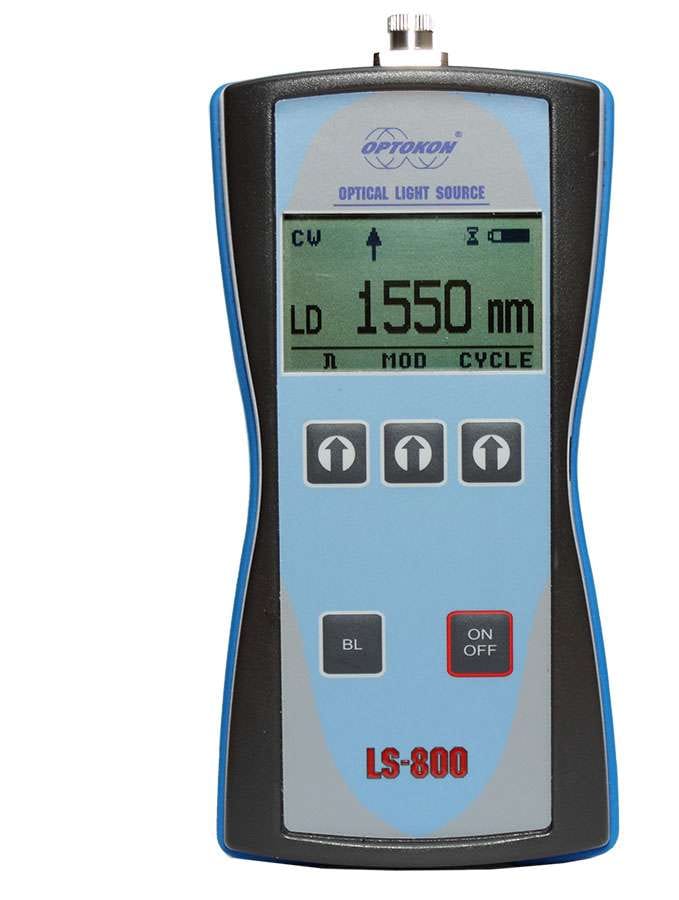

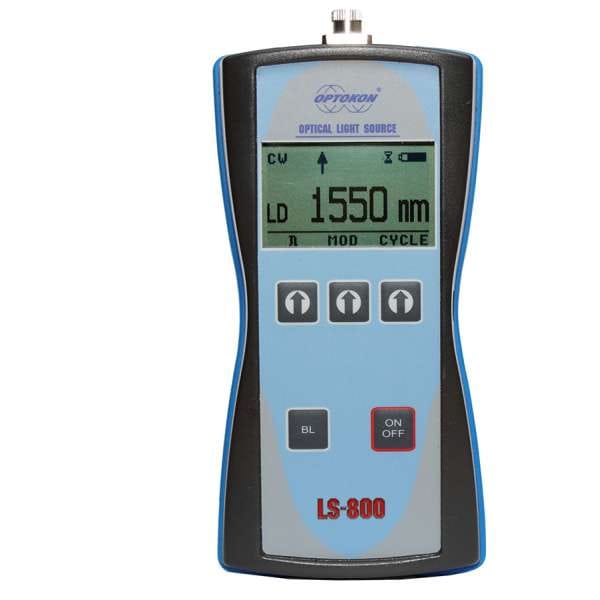

Optokon LS-800 – Light Source

Optokon LS-800 – Light Source

The LS-800 is an OPTOKON testing device designed for comprehensive fiber optic line diagnostics. The light source is available in various wavelengths. The model with one or two outputs and two light sources per port offers up to 4 wavelengths in a single device. The interchangeable adapter design allows for easy replacement of optical connectors based on actual requirements. Automatic Wavelength Detection The Automatic Wavelength Detection (AWD) mode enables the OPTOKON light source and power meter to operate without manual switching of the measured wavelength, preventing incorrect measurements.

Properties:

• Standalone light source with up to 4 channels
• Modulation CW, 270 Hz, 1 kHz, 2 kHz
• Automatic wavelength detection mode
• Interchangeable output adapters
• Automatic shutdown, cycle mode
