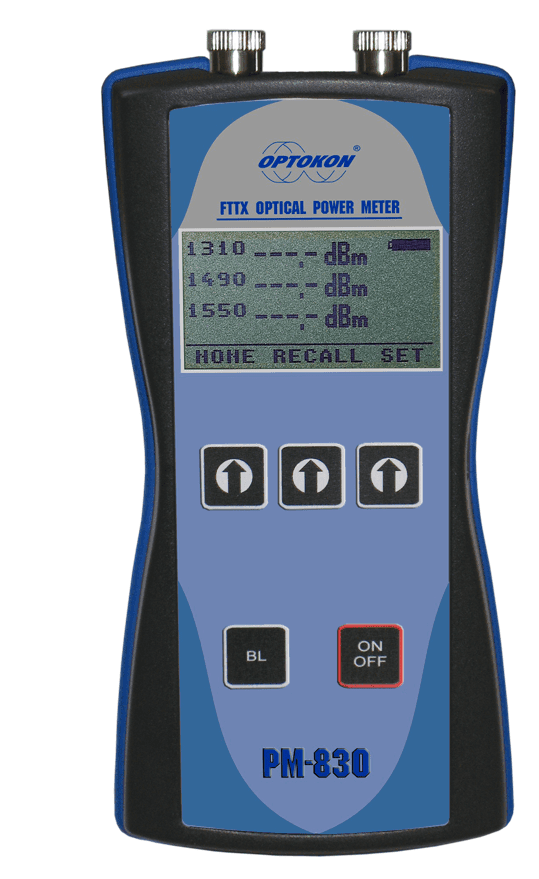

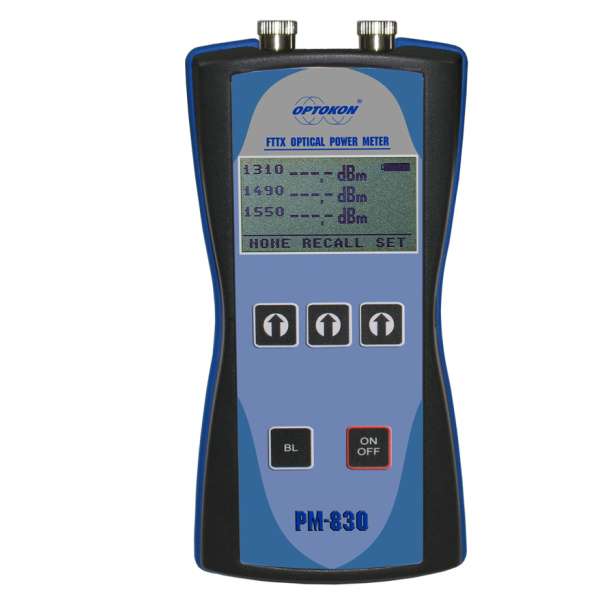

Optokon PM-830-FTTX Optical power meter
The optical power meter PM-830-FTTX is designed for the simultaneous measurement and display of all signals – voice, data, and video. The tester can be used as a portable power meter or as a USB probe, part of a test workstation. The FTTX tester is also perfect for testing PON services during activation and maintenance. The storage capacity allows for the storage and upload of up to 2000 measurements. The stored data can be easily exported to Excel, Word, or any other application. Two versions of the PM-830-FTTX meter are available: Single-Port: The version with a single input port – designed for measurements at the ends of optical fibers, requires the disconnection of the active device from the optical fibers for measurements. Dual-Port: The version with two optical ports – the dual-port tester with optical IN/OUT ports allows measurements of uninterrupted optical fibers with the connected active device, pass-through test mode. The PM-830-G1 tester is optimized for testing GEPON (Gigabit EPON) and GPON standards, with upstream transmission speeds of up to 1.25 Gbps. The 1310 nm channel enables accurate power measurements of burst upstream PON signals. The interchangeable plug/adapter design allows for easy swapping of optical PC or APC connectors (FC, SC) and easy cleaning of the output connector ferrule after removing the plug adapter. LC/PC and LC/APC are also available.
Properties:
- FTTH-PON-Test
- Three wavelengths measured simultaneously
- Pass-through test
- Absolute and relative optical power measurement
- Large storage capacity for storing measured data
- USB probe mode – complete control via simple commands
- Rechargeable Li-Polymer battery
- Battery status indicator
- Automatic shutdown
