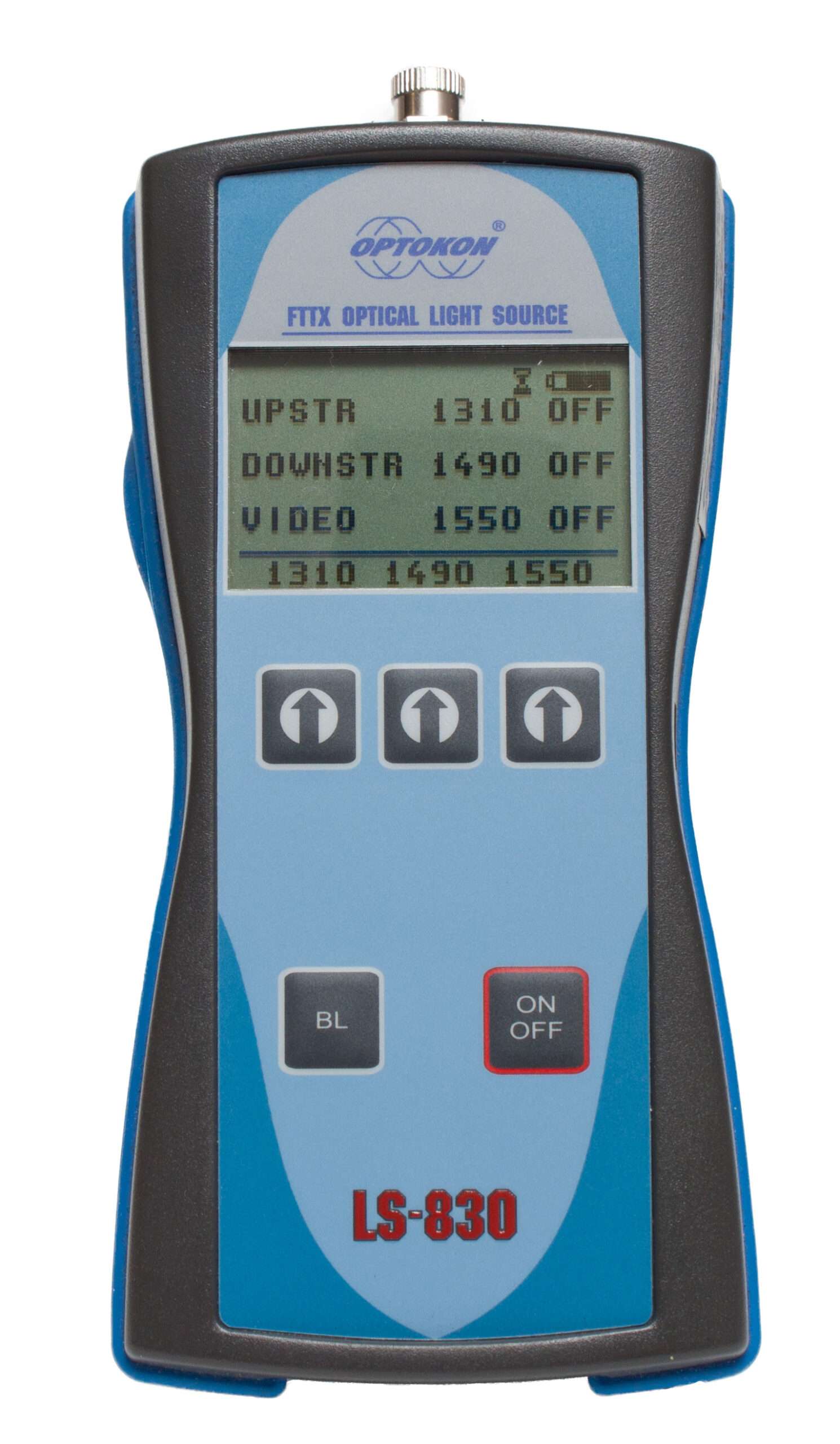

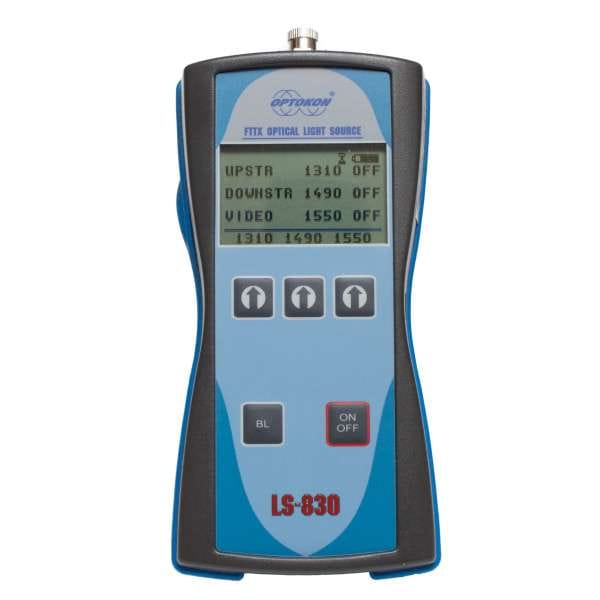

Optokon LS-830-FTTX Optical light source

Optokon LS-830-FTTX Optical light source

The optical light source LS-830-FTTX is designed for simultaneous testing of three wavelengths on optical lines, specifically in FTTH-PON projects. It combines the output wavelengths of 1310 nm, 1550 nm, and 1490 nm at a single output port. When used together with the PM-830-FTTX power meter, it enables simultaneous measurement and display of all three wavelengths. If needed, measurements can also be conducted at one or two wavelengths. The interchangeable connector/adapter design allows for easy replacement of optical PC or APC connectors (FC, SC, or ST) and easy cleaning of the output connector ferrule after removing the connector adapter. LC/PC and LC/APC are also available.

Properties:

• FTTH-PON-Tester
• Compact size, lightweight
• Three simultaneously transmitted wavelengths
• Built-in charger
• Rechargeable Li-Polymer battery
• Battery status indicator
• Automatic shutdown
