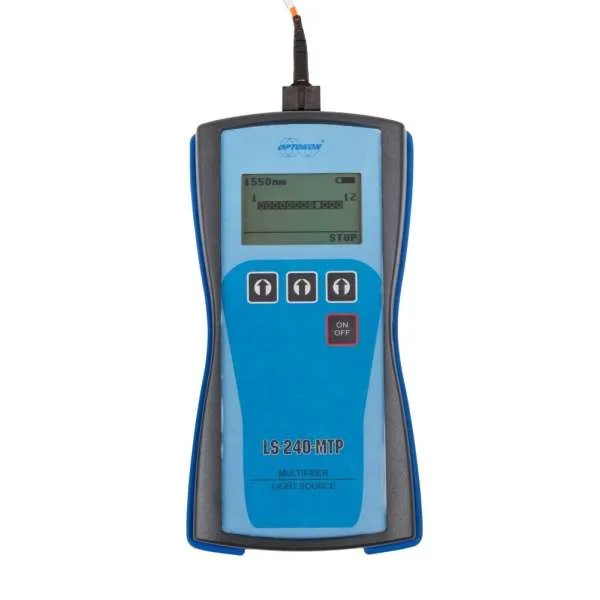

Optokon LS-240-MTP Multifiber Optical Light Source
The optical multi-fiber light source LS-240-MTP is designed for testing patch cords and cables with multi-fiber MTP/MPO connectors. This portable testing device meets all necessary technical requirements for field equipment. The LS-240-MTP can sequentially transmit light into all 12/24 fibers of MTP/MPO connectors, with switching performed either manually or automatically. In combination with the PM-240-MTP power meter, the insertion loss of all 12 fibers can be measured simultaneously. Additionally, the polarity status of the fiber connection between both MTP connectors can be verified. The output connector is based on a standard MTP connector with pins. The rechargeable battery ensures long-term operation with a minimum lifespan of 2 years. The batteries can be recharged via a USB port.
Properties:
- Handheld and lightweight
- Testing of multi-fiber MTP/MPO connectors
- No fanout patch cords required

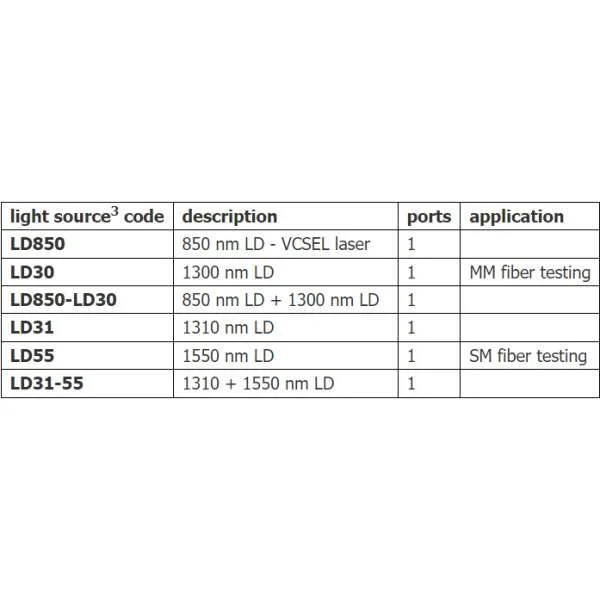

- Single or dual wavelength
- Manual fiber switching or cycle mode
- Remote control via USB
- Large display with backlight
- Powered by Li-Polymer battery with status indicator
- Battery recharging via USB port
