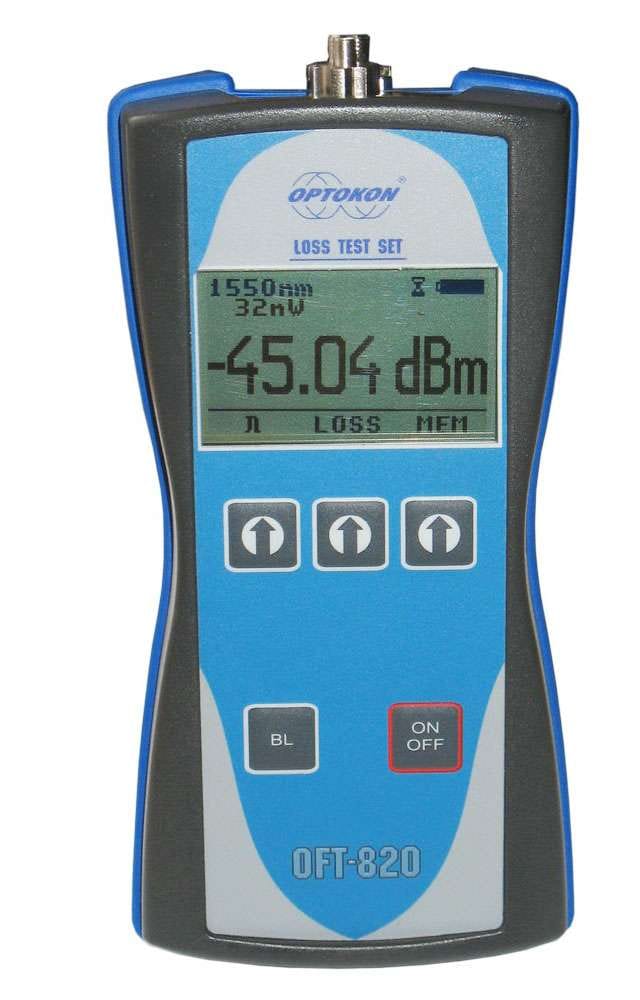

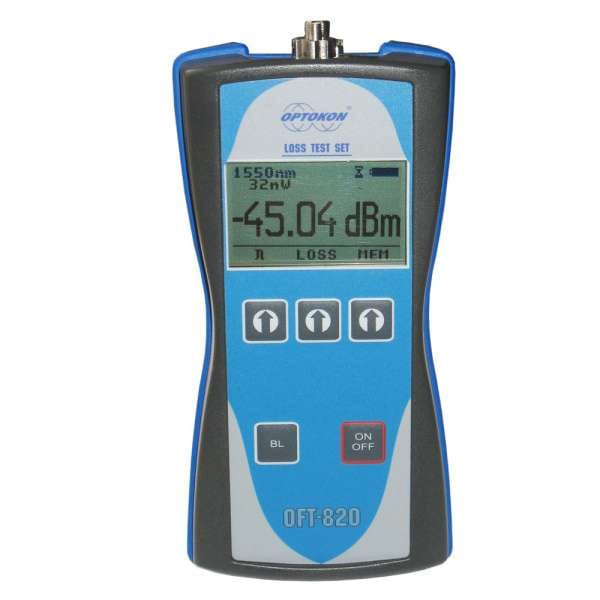

Optokon OFT-820 Loss Test Set
The optical attenuation test set of the OFT-820 series combines two optical testing devices—light source and power meter—into a single unit. The optical light source meets all necessary technical requirements for field equipment and is available in various operational wavelength combinations: 850, 1300, 1310, 1490, 1550, and 1625 nm. The optical power meter is designed for measuring absolute or relative optical power in optical networks. The memory capacity allows for the storage and uploading of up to 3000 measurements, including memory position or fiber number, wavelength, absolute or relative value, and insertion loss. The PC evaluation software SmartProtocol supports memory downloads, report generation, and data export for downloading data into an Excel spreadsheet. The rechargeable battery ensures long-term operation with a minimum lifespan of 5 years.
Properties:
- Portable power meter
- USB probe – accessory for test workstation
- Compact size, lightweight
- High-performance memory with two levels
- SmartProtocol PC software: memory download, report generation
- Data Exporter PC software – data download into Excel spreadsheet
- Modulation detection: 270 Hz, 1 kHz, 2 kHz
- AWD function (Auto Wavelength Detection)
- USB port – for charging the battery, data download, firmware upgrade
- USB probe mode – complete control via simple commands
- Absolute and relative optical power measurement
- Displayed units: dBm, dB, W
- Powered by built-in battery
- Battery status indicator, auto-off function
