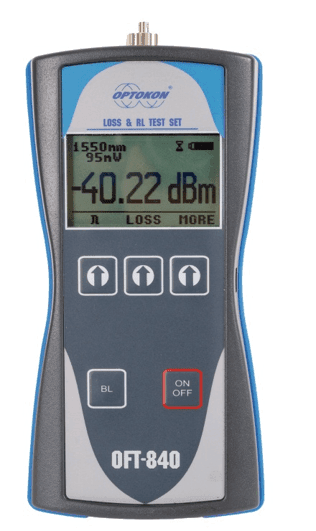

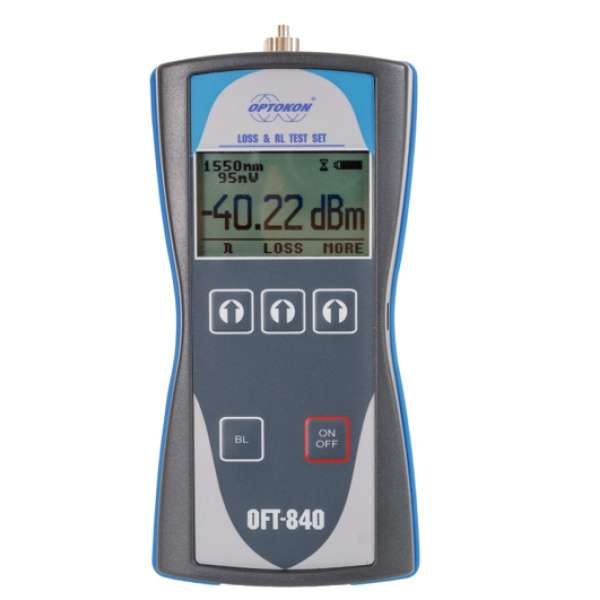

Optokon OFT-840 Loss Test Set with RL
The OFT-840 series optical attenuation test set with optical return loss (RL) combines an optical light source, power meter, and return loss testing into a single unit. The optical light source meets all necessary technical requirements for field devices and is available in two operational wavelengths: 1310 or 1550 nm. The optical power meter is designed for measuring absolute or relative optical power in optical networks. The optical RL function provides an extended measurement range with improved linearity. The memory capacity allows for storing and uploading up to 3000 measurements, including memory position or fiber number, wavelength, absolute value or relative value, and insertion loss. The PC evaluation software SmartProtocol supports memory downloads, test report generation, and data export for downloading data into an Excel spreadsheet.
Properties:
- Optical light source, power meter, and return loss tester
- High-performance memory with two levels
- SmartProtocol PC software: memory download, report generation
- Data Exporter PC software: data download into Excel spreadsheet
- Modulation detection: 270 Hz, 1 kHz, 2 kHz
- AWD function (Auto Wavelength Detection)
- USB port – for charging the battery, data download, firmware upgrade
- USB probe mode – complete control via simple commands
- Absolute and relative optical power measurement
- Displayed units: dBm, dB, W
- Powered by built-in rechargeable Li-Pol battery
- Battery status indicator, automatic shutdown function
