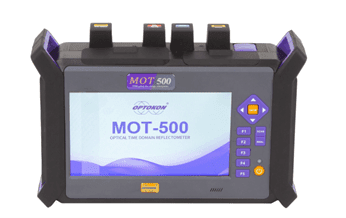

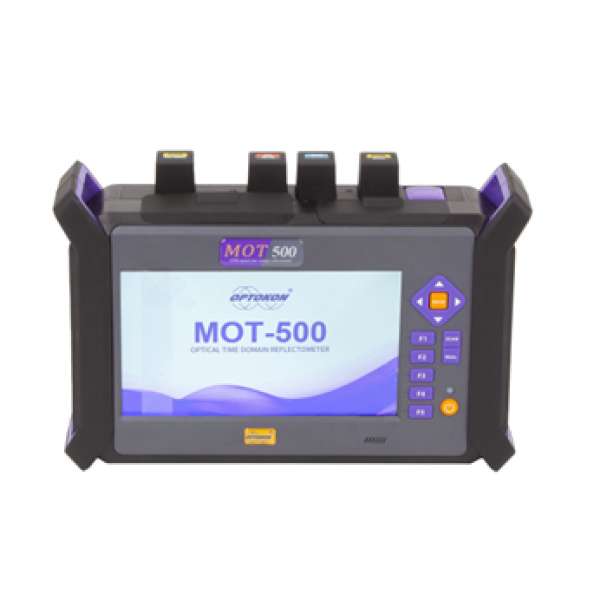

Optokon MOT-500 Mini OTDR series
The Optical Time Domain Reflectometer (OTDR) of the MOT-500 series is a next-generation intelligent measuring device designed for fiber optic communication systems. As optical networks become more prevalent in urban and rural areas, the measurement of optical networks becomes shorter and more distributed; the MOT-500 is specifically developed for these types of applications. It is cost-effective and offers outstanding performance. The MOT-500 is manufactured with patience and care, meeting national standards to combine extensive experience and modern technology. It undergoes rigorous mechanical, electronic, and optical testing and quality assurance. Additionally, the new design makes the MOT-500 smarter, more compact, and versatile. Whether you need to detect the connection layer when building and installing optical networks or carry out efficient maintenance and troubleshooting, the MOT-500 can be your best assistant.
- VFL (Visual Fault Locator) The VFL, available as a standard module in the MOT-500 OTDR series, provides integrated visual fault locating at 650 nm on an FC/UPC connector.
- VFL (Visual Fault Locator) The VFL, available as a standard module in the MOT-500 OTDR series, provides integrated visual fault locating at 650 nm on an FC/UPC connector.
- PM (Power Meter) The MOT-500 OTDR series features an optional integrated power meter, allowing technicians to easily check for the presence of a signal.
- LS (Laser Source) The MOT-500 OTDR series includes an optional integrated laser source via the OTDR1 port, enabling technicians to easily verify the overall loss of the local network with a power meter.
- FM (Fiber Microscope) The optional fiber inspection probe facilitates inspection before connection. MOT-500 OTDRs offer this function via a USB port, allowing quick and easy verification of connector end-faces for contamination, and also enabling image capture and storage.

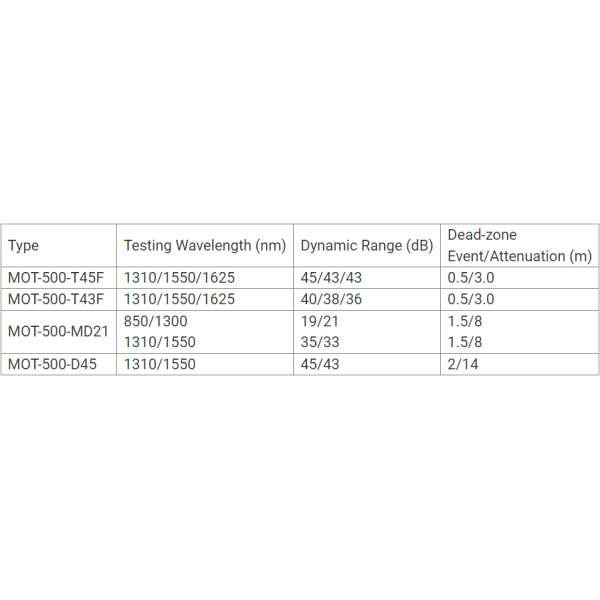

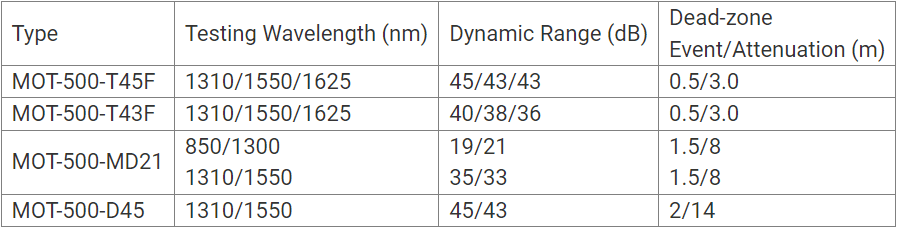

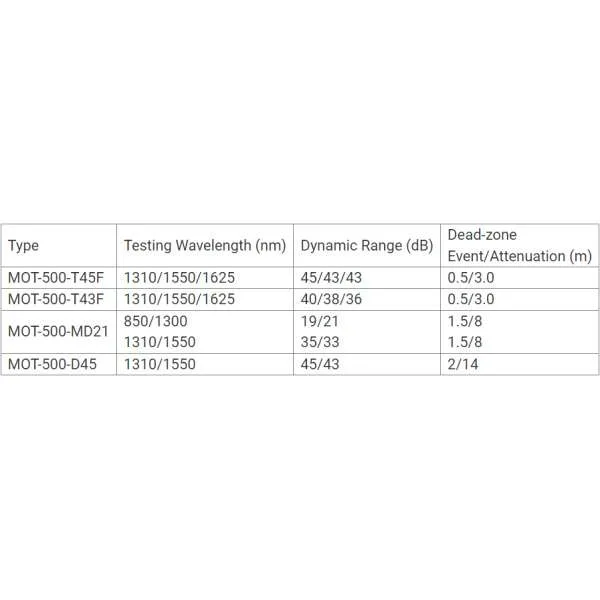

- FTTH Testing in PON Networks Models T45F and 31-49-55/62 of the MOT-500 OTDR series are designed for maintenance and troubleshooting of PON networks without service interruption. MOT-500 OTDRs can easily be tested over 1×64 PLC splitters in PON testing (Model: MOT-500-T45F).
Fiber Microscope The microscope is optional for MOT-500 OTDRs. With 400x magnification and a variety of accessories, it ensures perfect connection conditions before testing. iOLA Fiber Connection Monitoring Function: MOT-500 OTDRs come with an optional integrated power meter that allows technicians to easily check for the presence of a signal.
Properties:
- Integrated design, intelligent and robust
- 7-inch LCD screen with anti-reflective coating
- 1 m drop protection
- Fiber connection card test
- 1 m ultra-short dead zone
- Testing through splitters up to 1×64
- 400x fiber microscope
- Remote control function
- Supports multilingual display and input
- FTTX testing with PON networks
- CATV network testing
- Access network testing
- LAN network testing
- Metro network testing
- Laboratory and workshop testing
- Live fiber troubleshooting
