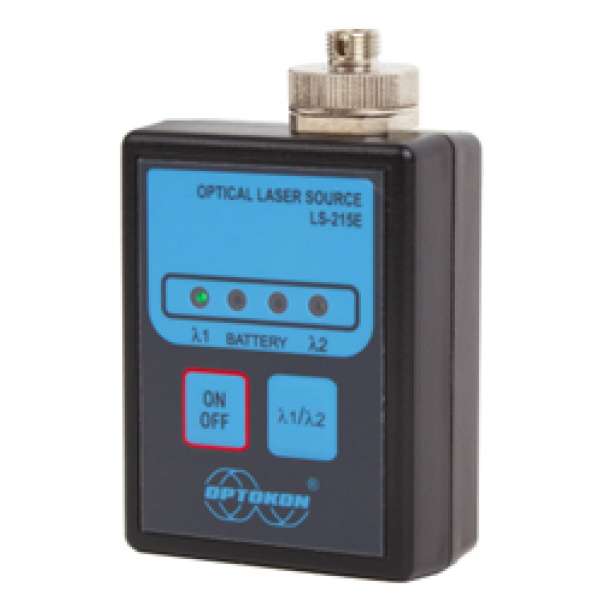

Optokon LS-215E Pocket optical light source
The optical light source LS-215E is a compact and cost-effective device that meets all essential technical requirements for field instruments. It operates at wavelengths of 850/1300 nm for multimode or 1310/1550 nm for singlemode applications. The rechargeable battery ensures long operation with a minimum lifespan of 2 years. The batteries can be conveniently recharged via a USB port or an external AC/DC adapter. The versatile output connector simplifies the integration of commonly used optical adapters (FC, SC, or ST) in telecommunications, data, and industrial networks. This output connector is specifically designed for connecting connectors with a polished PC surface. The LS-215E light source can work together with the PM-215E, which shares the same compact design as the smallest optical power meter. Together, they enable insertion loss measurements and evaluation of the power budget in optical networks. The tester is equipped with a USB port for convenient battery recharging.
Properties:
- Dual-wavelength output
- Multimode and singlemode version
- Smallest size, lightweight
- Interchangeable output adapters
- USB port: battery recharging
- Powered by Li-Polymer battery
- Battery status indicator
- Automatic shutdown after 10 minutes
