Optokon FOI-400AG – AutoGet WiFi Microscope

Optokon FOI-400AG – AutoGet WiFi Microscope – Intelligent portable wireless fiber end face visual inspector

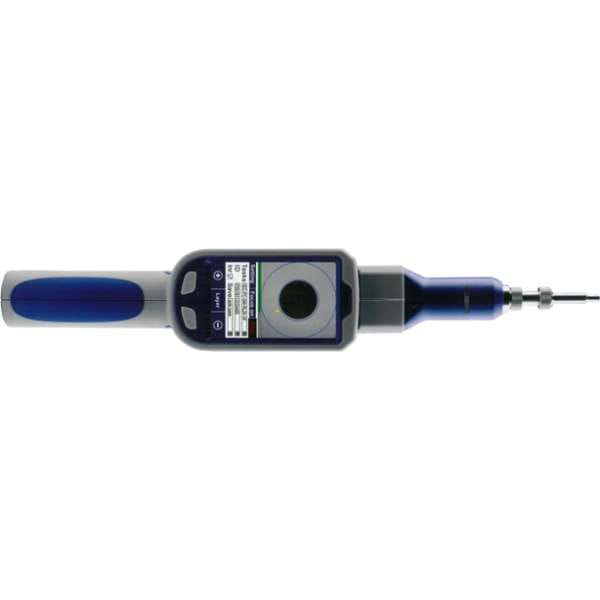

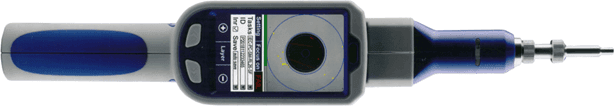

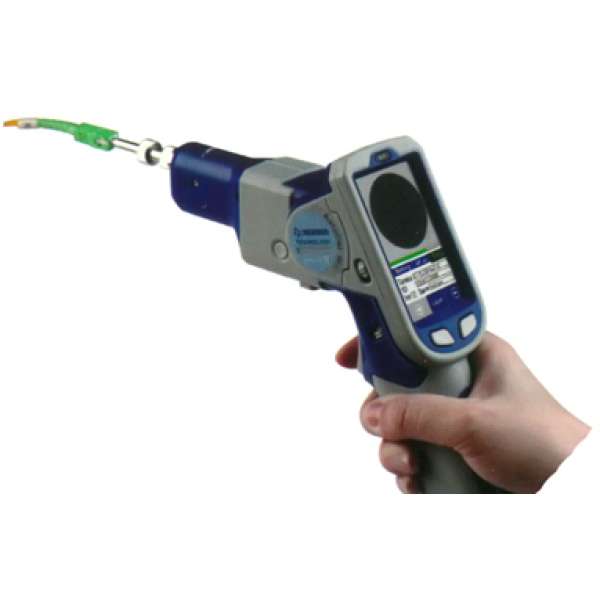

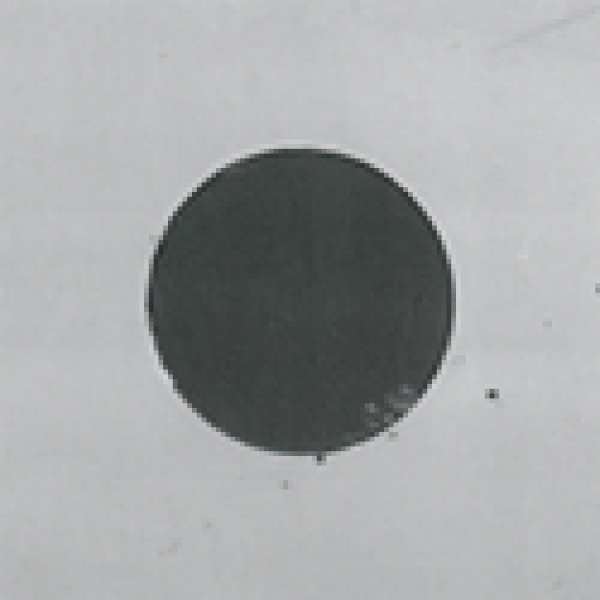

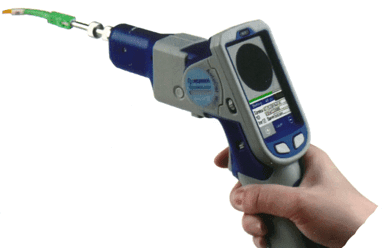

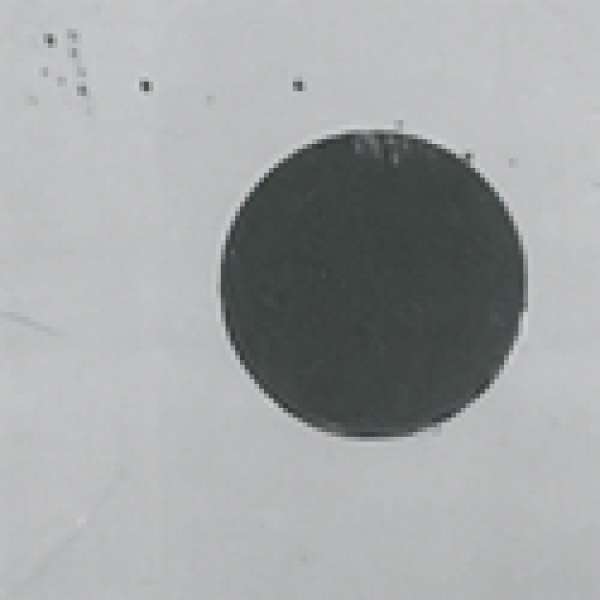

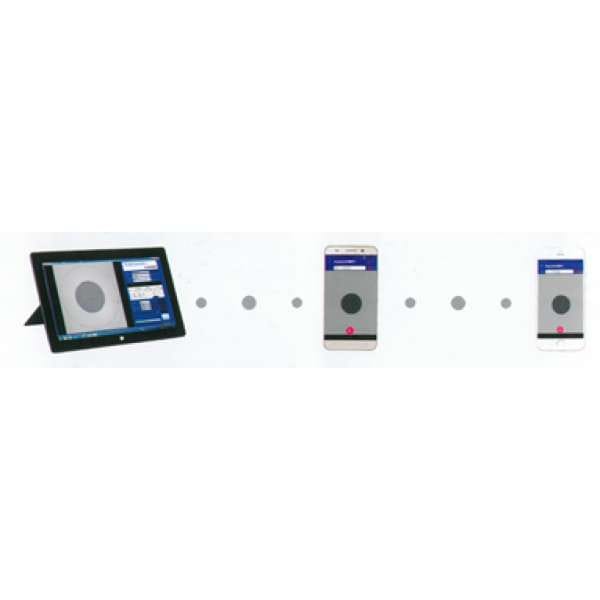

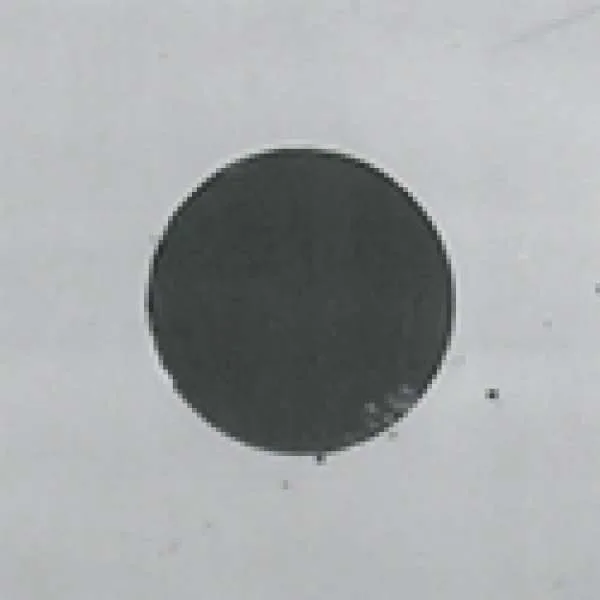

All-in-One Design Based on an embedded Linux system, the AutoGet WiFi probe features an integrated 3.2-inch high-density LCD. AutoGet WiFi can perform individual inspections and analyses without the need for connections to other devices. Foldable and Flexible With its unique rotational axis structure, AutoGet WiFi can be used in a straight or folded position, allowing measurements in different heights or conditions. One-Hand Operation The integrated 3.2-inch LCD touchscreen enables simple and effective interaction. One-hand operation is facilitated by two buttons that cover most adjustment functions. One-Click Measurement Simply press the trigger button, and AutoGet WiFi will automatically perform the entire measurement. The dimension software detects the DUT (Device Under Test), automatically centers and focuses. The fiber end face is accurately analyzed according to IEC or a custom standard, and the test results are saved for future reference. Wireless Data Transmission Through a wireless connection, AutoGet WiFi can transmit real-time images, mass data, and individual reports to smart devices on iOS, Android, or Windows platforms. USB cable mode is also supported. Test results can be stored on an embedded micro SD card.

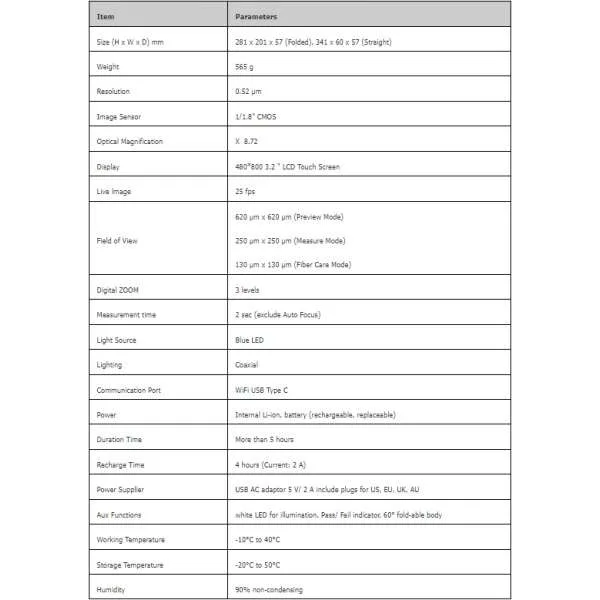

Properties:

• Over 5 hours of battery life
• Complete series of adapters included
• PASS/FAIL indicator
• White LED for illumination
