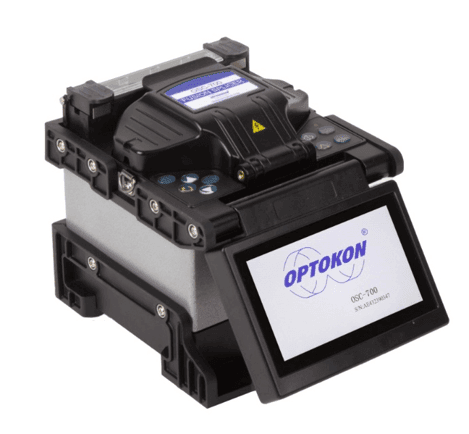

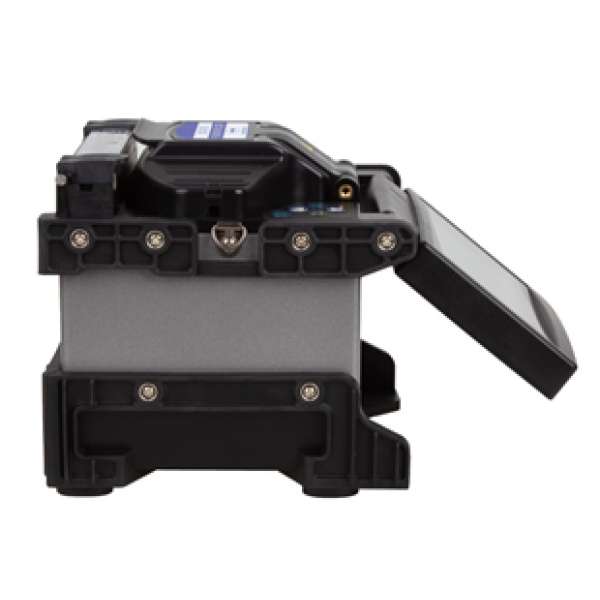

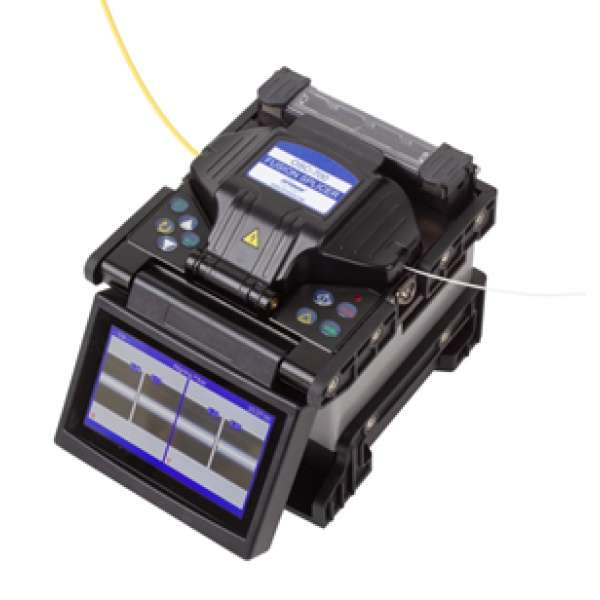

Optokon OSC-700 Single Fiber Fusion Splicer

Optokon OSC-700 Single Fiber Fusion Splicer

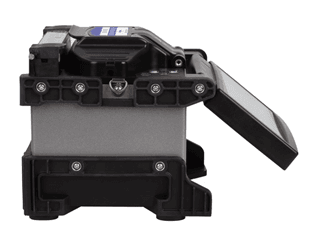

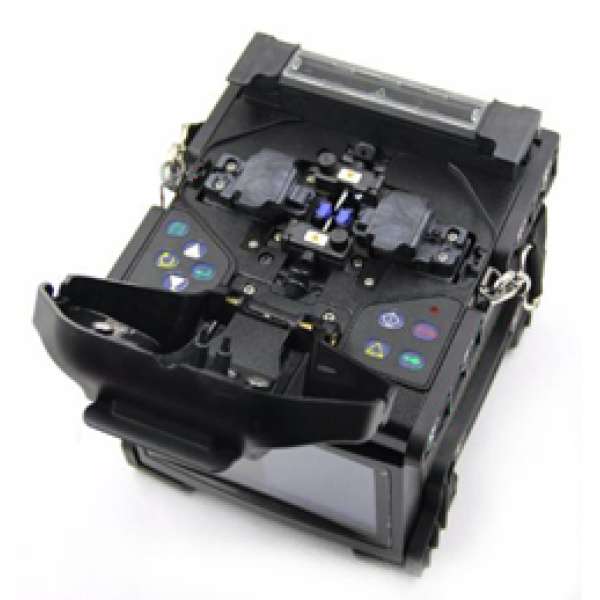

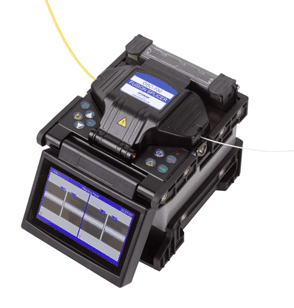

The OPTOKON OSC-700 is an automatic fusion splicer designed for SM, MM, DS, NZ-DS (G655), EDF, and other types of fibers. The OSC-700 is capable of ensuring high-quality splices even under the most adverse environmental conditions. The OSC-700 splicing devices are suitable for aligning either the core or the cladding. In both methods, the two stripped fibers are automatically aligned by the fusion splicer in the X and Y planes and then fused together. The stripped fiber area is protected either by a coating or a splice protection sleeve.

Properties:

• Core-alignment PAS technology
• Fastest splice and heat-up time in the world: 7 seconds for splicing and 13 seconds for heating

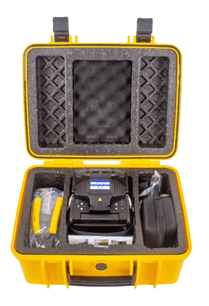

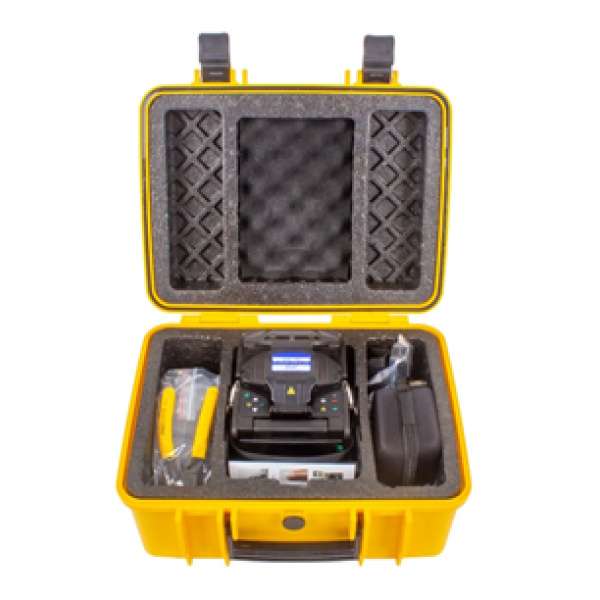

• Redesigned carrying case: easy to carry and can be used as a workbench
• Powerful battery and top-quality electrode: up to 250 continuous splices and heat-ups, and 5000 times the lifespan of the electrode
• Compact and lightweight
• Fully automatic operation
• Splice quality guaranteed at heights of up to 5000 m
• SYSTEMTEST ensures optimal working conditions

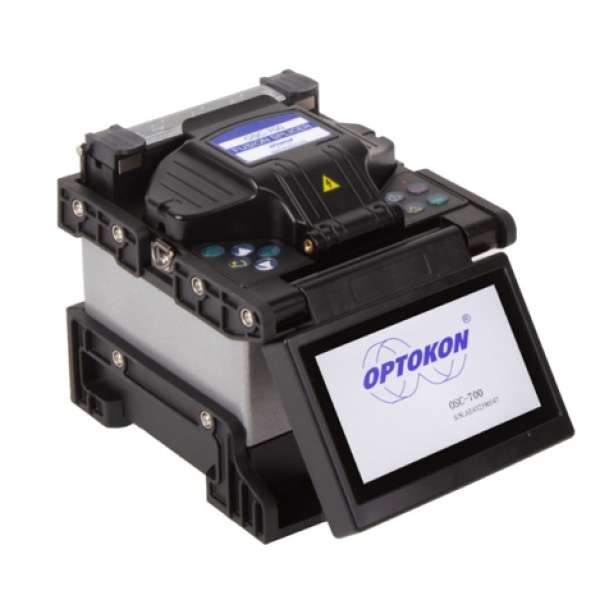

• Color LCD monitor
• Pause function, convenient for scientific research
• Storage of 8000 splice results
• USB and DC interface
• 350x magnification for X and Y axes
