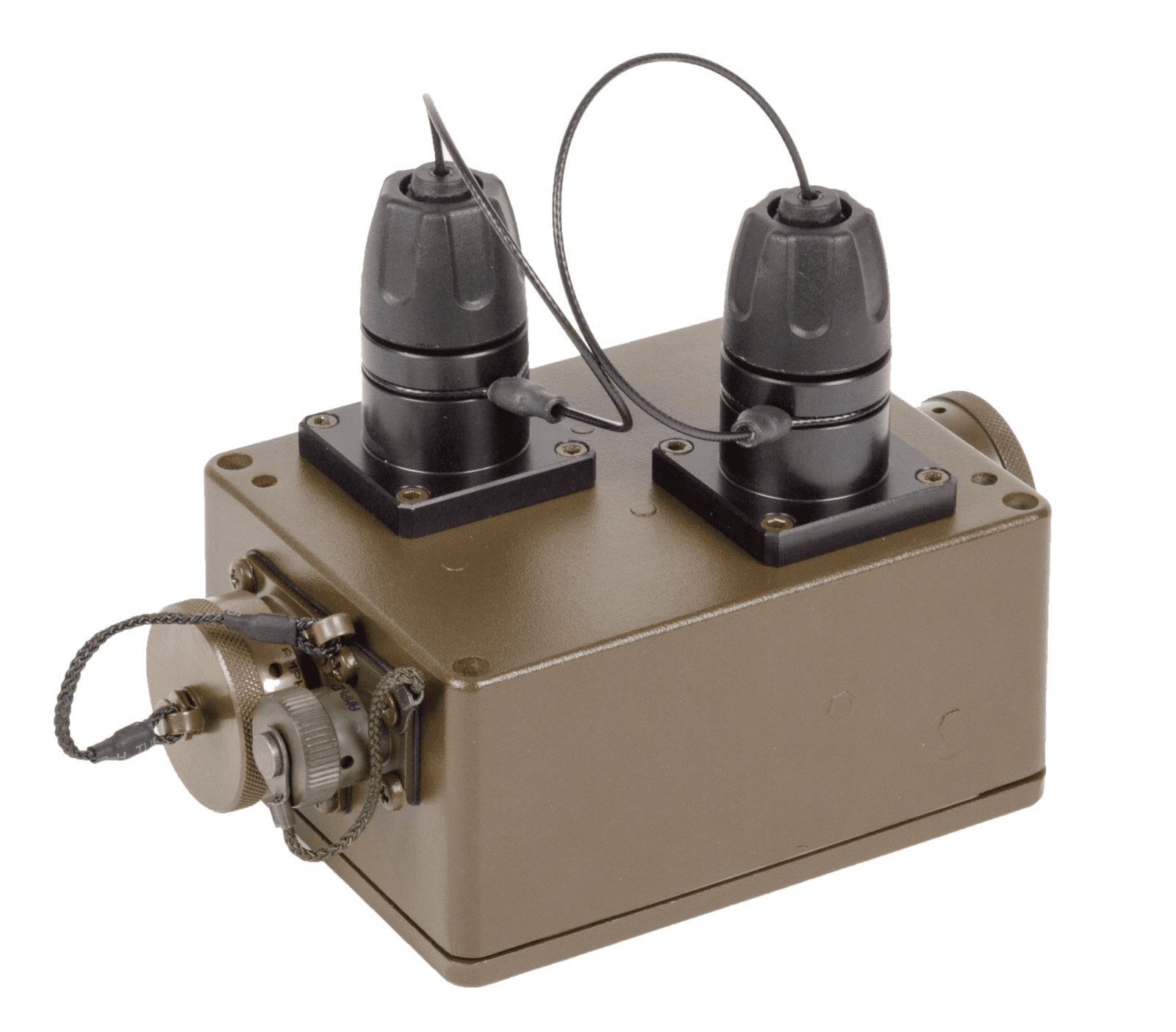

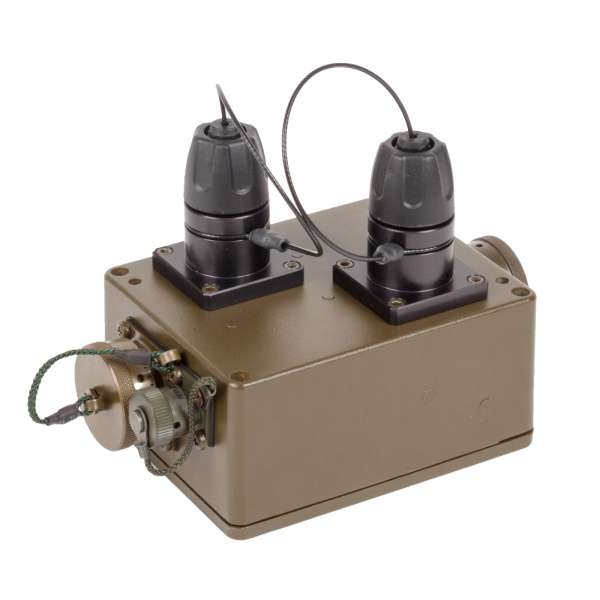

Optokon LMC-02.GC Gigabit Ethernet Mini Media Converter Ruggedized type
The LMC series introduces the media converter in a robust metal housing. It features Expanded Beam connections for fiber optic cables and copper twisted-pair ports designed for harsh environmental conditions. The durable LMC design extends the use of Ethernet in rugged environments such as heavy industry, petrochemicals, mining, broadcasting, and other field applications. It meets the requirements for mobility, easy installation, and the mechanical resilience needed for field use. The LMC converters provide you with the freedom to extend your 10/100/1000 Mbps cabling distance, enabling connectivity of up to 2 km over MM fiber and up to 50 km when using SM fiber. LED indicators display the power status of the converter, the LAN port, and fiber activity. The base configuration LMC-02.GC includes two media converters in a robust housing. The optical and electrical port converters are completed at separate connections, HMA type for fiber optics and robust RJ-45 for the copper LAN interface. Power for both is provided via a robust 3-pin connector.
Properties
- Two 1G Media Converters
- 10/100/1000BASE-T to 1000BASE-X Converter
- Rugged design for use in harsh environments
- Small, compact box
- HMA Expanded Beam FO interface
- Auto-Crossover for MDI/MDIX in the TP port
- Auto-Negotiation or manual mode in the TP port
- Supports Jumbo Frame 9K Packet
- Store-and-Forward-Mode 1
- Supports Link Fault Pass Through (LFP) function
- 10-36 V DC power supply
