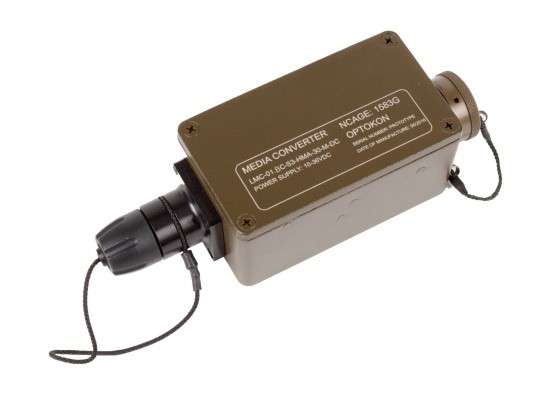

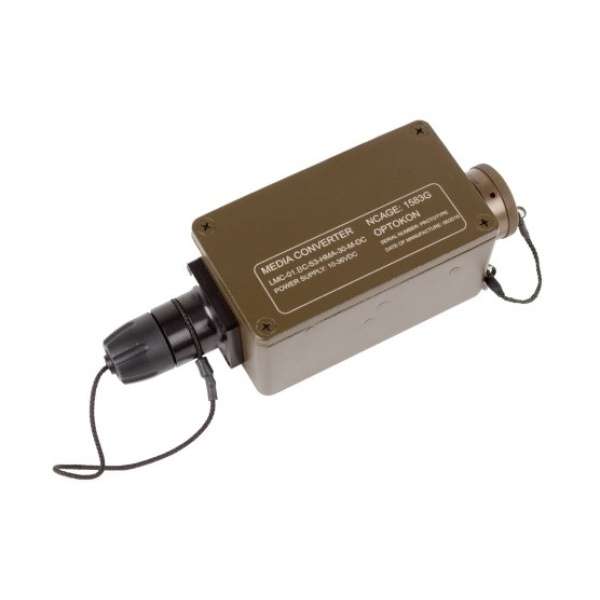

Optokon LMC-01.BC Fast Ethernet Media Converter Ruggedized type
The LMC series introduces the media converter in a robust metal housing. It features Expanded Beam connectors for fiber optic cables and copper twisted-pair ports designed for harsh environmental conditions. The rugged LMC design extends the use of Ethernet in tough environments—heavy industry, petrochemicals, mining, broadcasting, and other field applications. It meets the mobility requirements, easy installation, and mechanical robustness necessary for field use. The LMC converters give you the freedom to extend your 10/100/1000 Mbps cabling distance by enabling connectivity of up to 2 km over MM fiber and up to 50 km when using SM fiber. LED indicators display the converter’s power status, LAN connection, and fiber activity. The base configuration LMC-01.BC includes the media converter in a robust enclosure. Data transmission and power supply are provided through the same ports, PoE (PD – powered device), or unused wires in the data cable. Optical and copper cables can be ordered as accessories.
Properties
- 10/100Base-TX to 100Base-FX Converter
- Designed for connecting LANs in harsh environmental conditions
- Fiber optic connection up to 2 km for MM, 10 km for SM
- HMA fiber optic connection
- Auto-Negotiation
- Auto MDI/MDIX
- Operation in Store-and-Forward mode 1
