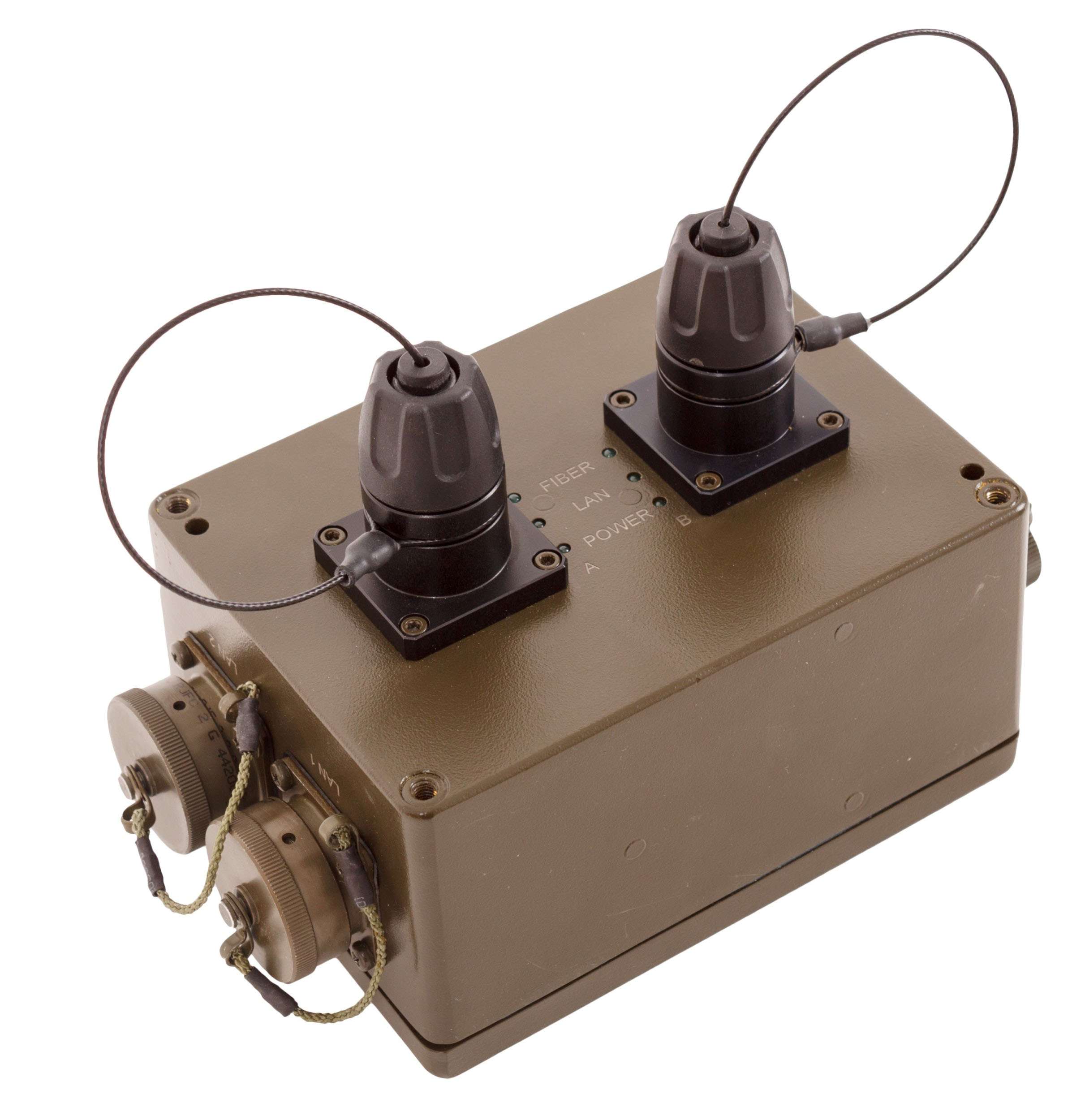

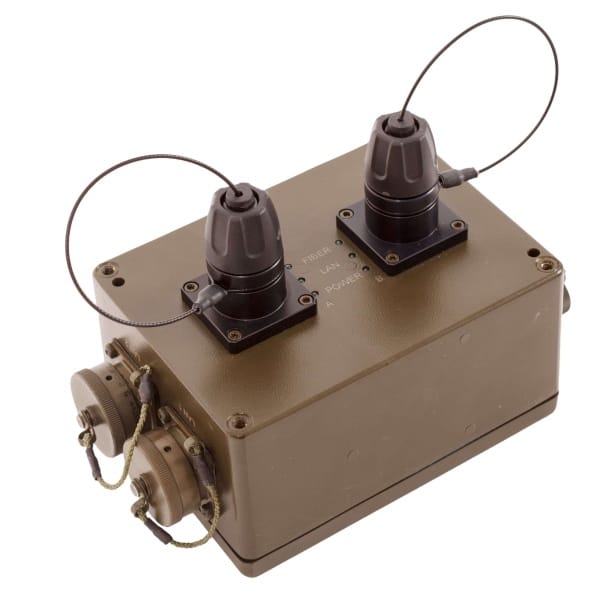

Optokon LMC-02.GF Gigabit Ethernet Media Converter Ruggedized type
The LMC series presents the media converter in a robust metal housing. It features Expanded Beam connectors for fiber optic cables and copper twisted-pair ports designed for harsh environments. The robust LMC design enhances the use of Ethernet in demanding conditions—such as heavy industry, petrochemicals, mining, broadcasting, and other field applications. It meets the requirements for mobility, easy installation, and the mechanical resilience necessary for field use. The LMC converters provide the freedom to extend your 10/100/1000 Mbps cabling distance, enabling connectivity of up to 2 km over MM fiber and up to 50 km when using SM fiber. LED indicators display the power status of the converter, the LAN port, and fiber activity. The basic LMC-02.GF configuration includes two independent media converters in one box. The optical and electrical ports of both converters are completed at separate connections, with HMA for fiber and a robust RJ-45 for the copper LAN interface. The power supply for both converters is provided through a single connector.
Properties
- Two 1G Media Converters
- 10/100/1000BASE-T to 100/1000BASE-X Converter
- Auto-Crossover for MDI/MDIX in the TP port
- Auto-Negotiation or manual mode in the TP port
- Enable or disable flow control support
- Support for Jumbo Frame 9K Packet
- Input/output bandwidth control
- Support for 802.3ah OAM/IP in-band management
- Firmware upgrade via the web
- Management password setting
- Dying Gasp (remote detection of power failures)
- Support for Link Fault Pass Through (LFP) function
- Support for Auto Laser Shutdown (ALS) function
- Web management in standalone mode
- Support for online firmware upgrade (locally) via the web manager
- Support for 16-tag VLAN group
- RMON counters
