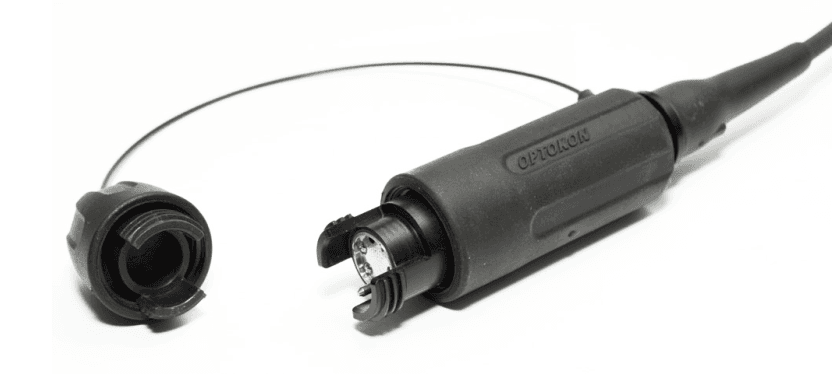

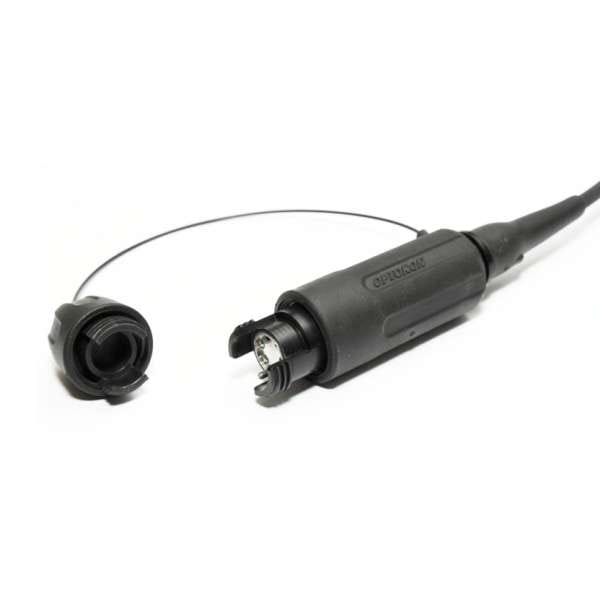

Optokon HMA-J Series connector
The OPTOKON HMA-J connector series, a medium-sized “Expanded Beam” connector, is designed for connecting nodes in a tactical network using fiber optic cables. The Expanded Beam Technology employed preserves all the advantages of signal transmission over optical fibers in harsh environmental conditions. In addition to military optical networks, the HMA-J is suitable for a variety of applications, such as connections in heavy industry, petrochemical applications, and temporary optical broadcasting lines. The innovative designs ensure operational capability in the toughest environments, where high performance and absolute reliability are crucial. Thanks to the Expanded Beam Technology, the precise optical alignment system makes the connector immune to water, mud, dust, oil, and other contaminants. The hermaphrodite HMA-J coupling eliminates the need for adapters and male or female counterparts. Hermaphrodite housings enable quick deployment and create low-loss single-mode and multi-mode daisy-chain connections in various configurations, ranging from simplex to four-fiber optics. The OPTOKON HMA-J is ideally suited for extreme environmental conditions that require low maintenance and rapid repair capabilities.
Properties
- Advanced Expanded Beam Technology
- MIL-DTL-83526 compatible
- Hermaphroditic connection
- 2/4 fiber channels, single-mode or multi-mode
- Robust connector design
