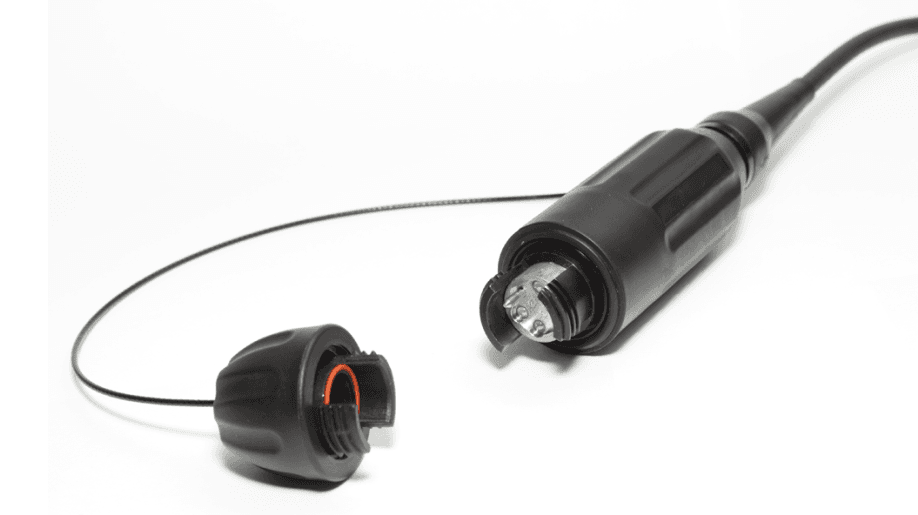

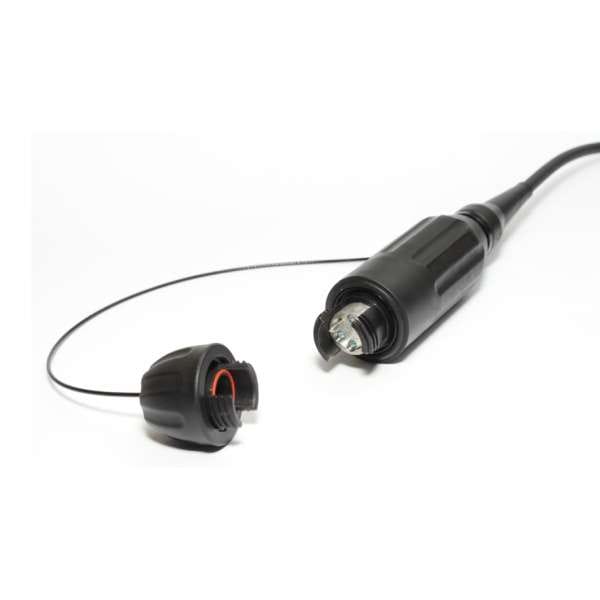

Optokon HMA-S Series connector
The OPTOKON HMA-S connector series, a large “Expanded Beam” connector, is designed for connecting the nodes of a tactical network using fiber optic cables. The expanded beam technology retains all the advantages of signal transmission over optical fibers in harsh field conditions. In addition to military optical networks, the HMA-S is suitable for a variety of applications, such as connections in heavy industry, petrochemical applications, and temporary optical transmission lines. The functionality of the HMA-S connector is based on MIL standards. The innovative designs ensure operability in the toughest environments, where high performance and absolute reliability are critical. Thanks to the expanded beam technology, the precise optical alignment system makes the connector immune to water, mud, dust, oil, and other contaminants. The HMA-S hermaphroditic coupling eliminates the need for adapters and male and female counterparts. Hermaphroditic housings allow for quick deployment and create low-loss single-mode and multi-mode daisy-chain connections in a variety of configurations from four to eight fibers. The OPTOKON HMA-S is ideally suited for extreme environmental conditions, where low maintenance and quick repair capabilities are required.

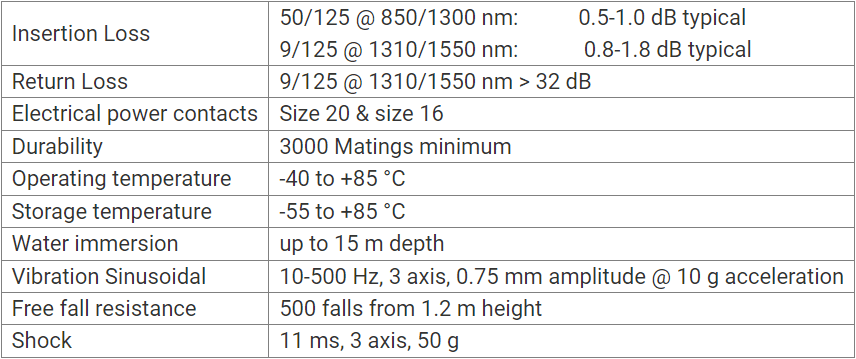

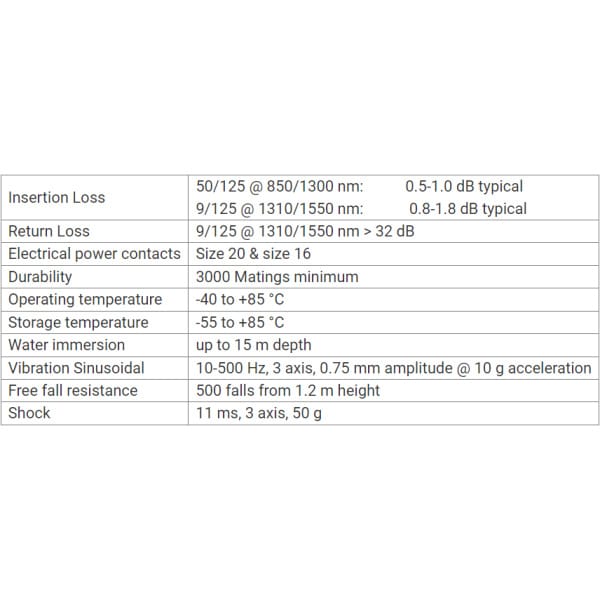

Properties
- Advanced Expanded Beam Technology
- Hermaphroditic connection
- 2 to 6 fiber channels, single-mode or multi-mode
- Low insertion loss / high return loss
- Hybrid electrical and fiber channel options available
- Robust connector design
- Complies with MIL-STD 810G and AECTP-400 standards
