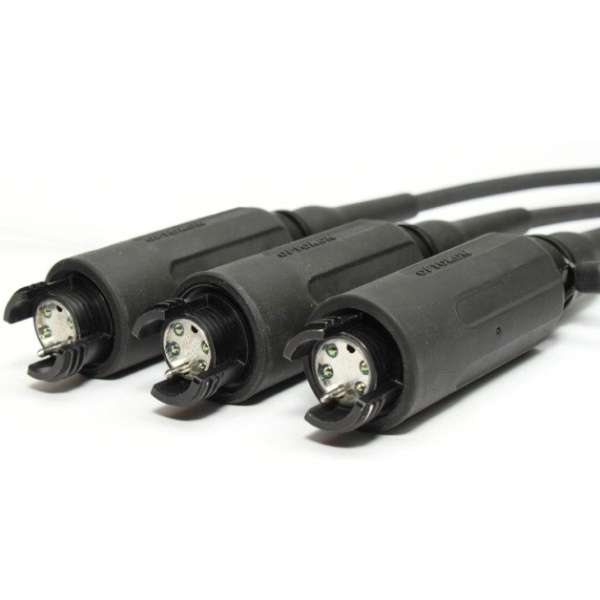

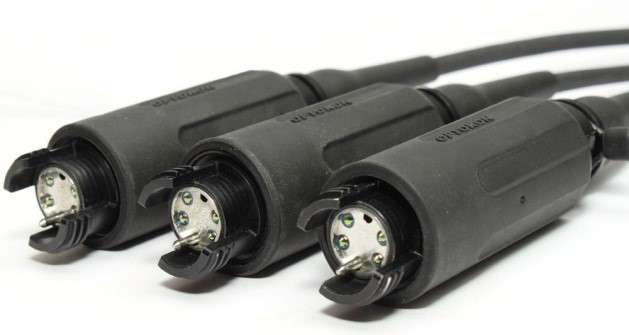

Optokon HMA patchcord
The OPTOKON HMA optical modules are designed to connect nodes of a tactical network using fiber optic cables. The “Expanded Beam Technology” employed preserves all the advantages of signal transmission over optical fibers in harsh environmental conditions. The precise optical alignment system benefits from the well-established Expanded Beam Technology in the industry, making it immune to water, mud, dust, oil, and other contaminants. The HMA hermaphrodite coupling eliminates the need for adapters and male or female counterparts. Hermaphrodite housings enable quick deployment and create low-loss single-mode, multi-mode, and hybrid daisy-chain connections in a variety of configurations, ranging from simplex fibers to copper hybrids. The OPTOKON HMA is ideal for extreme environmental conditions where low maintenance and quick repairs are required. The connectors are uniquely field-installable and can be quickly repaired on-site. There are two different types of OPTOKON HMA connection modules: a) Military tactical cable type LD with OPTOKON HMA connectors on both ends. b) Hybrid connection module OPTOKON HMA for standard fiber optic connections (FC, SC, ST, LC, etc.).
Properties
- Advanced Expanded Beam Technology
- Hermaphroditic connection
- 1 to 8 fiber channels, single-mode or multi-mode
- Robust connector design
- Two versions available
- Tactical cables with HMA connectors
- HMA hybrid cables with sealing fittings
