Optokon LMSR-R63 Ruggedized next Gen Gigabit Router

Optokon LMSR-R63 Ruggedized next Gen Gigabit Router

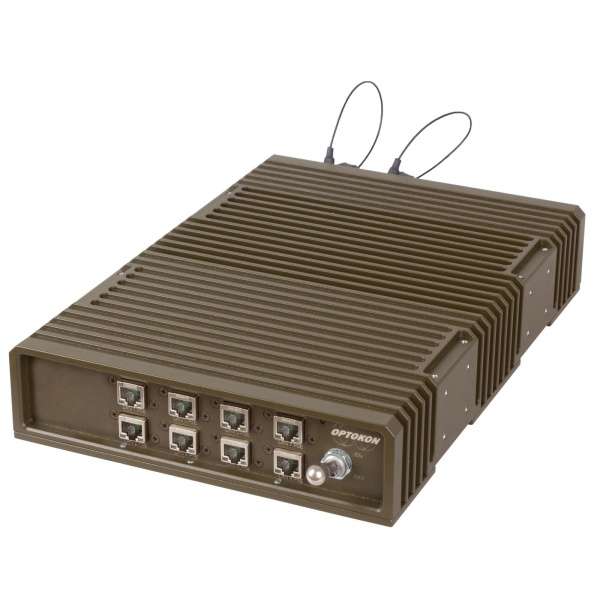

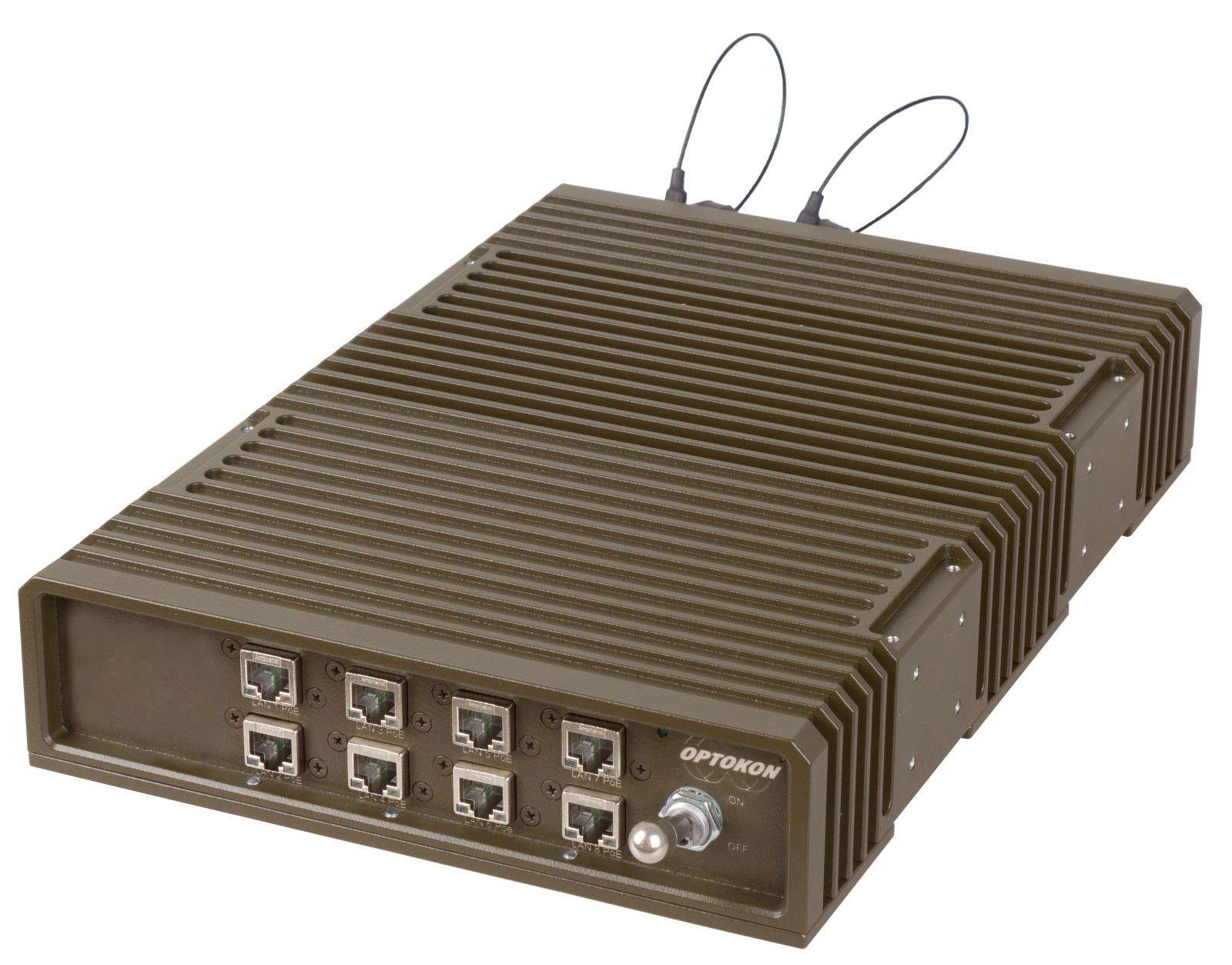

  The rugged OPTOKON LMSR-R63 router, based on the Cisco Next Gen GE Embedded Router 6300, is optimized for military networks requiring IP routing and services. This compact router provides highly secure data, voice, and video communication for stationary and operational tactical network nodes. The LMSR-R63 is a powerful, rugged router designed for use in harsh environments, offering reliable operation under extreme temperatures and shock and vibration conditions typical for mobile applications in rough terrain. With integrated hardware encryption, the router offloads the routing engine from encryption processing, providing highly secure yet scalable video, voice, and data services for mobile and embedded outdoor networks. The router features high performance, six Gigabit Ethernet interfaces (two routed and four switched), and a comprehensive Cisco IOS software feature set, offering investment protection for customers using bandwidth-intensive applications in mobile or embedded networks across heavy industry, public safety, transportation, defense, and energy sectors. The router supports a variety of management functions, including Cisco DNA, web UI, IOx, MIB – SNMP (version 2 and 3), Syslog, and more. It is compatible with all common 24V DC power supply systems. The router operates within a wide temperature range of -40 to +70 °C and can be used as a standalone device or mounted in a 19-inch rack.

Properties

• Robust, compact design that withstands harsh environmental conditions and rough handling
• Interface support:
  • 4x GE LAN-Ports with PoE
  • 2x GE WAN-Ports
• Copper cable port or fiber optic (HMA connector)
  • MRJ (RJ-45) or D38999 multipin rugged connectors
  • 1x RS-232 console
  • 1x USB
• Advanced Cisco IOS-XE next-generation software
• Crypto throughput (250 Mbps)
• Wide operating temperature range of -40 to +70 °C
• Mountable in ½ or full width of a 19-inch rack
• Stackable with the rugged LMSW-E33 switch
• Power supply: 20-40 V DC
• Low power consumption of 12 W (up to 150 W with PoE)
