Optokon LMSB – 14.1G Ruggedized Switchboard – extension gateway

Optokon LMSB – 14.1G Ruggedized Switchboard – extension gateway

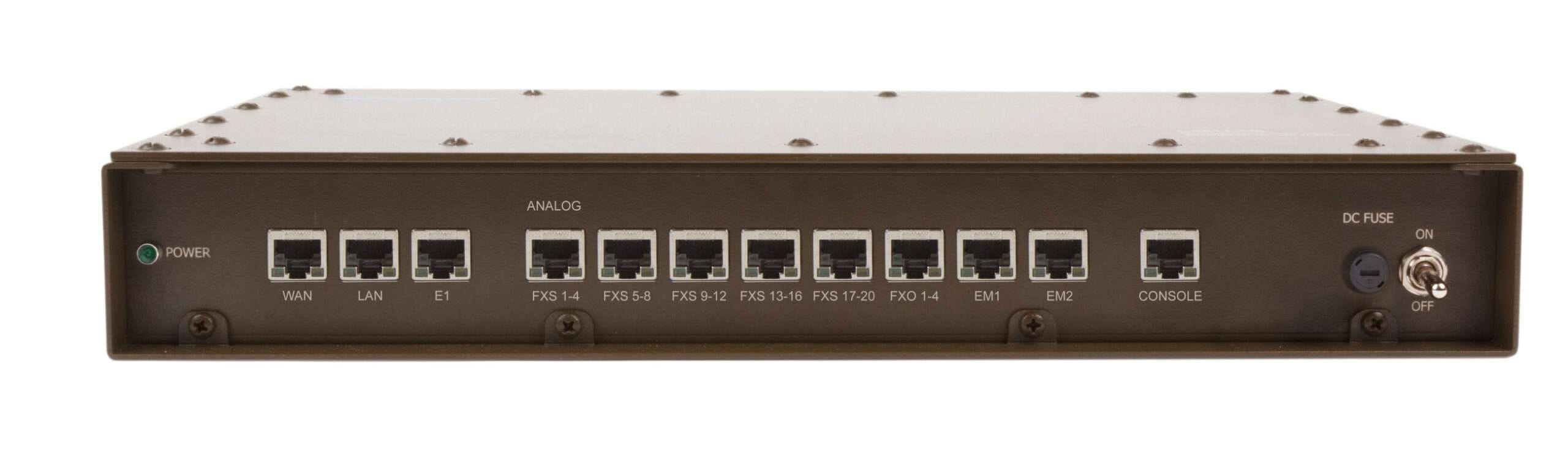

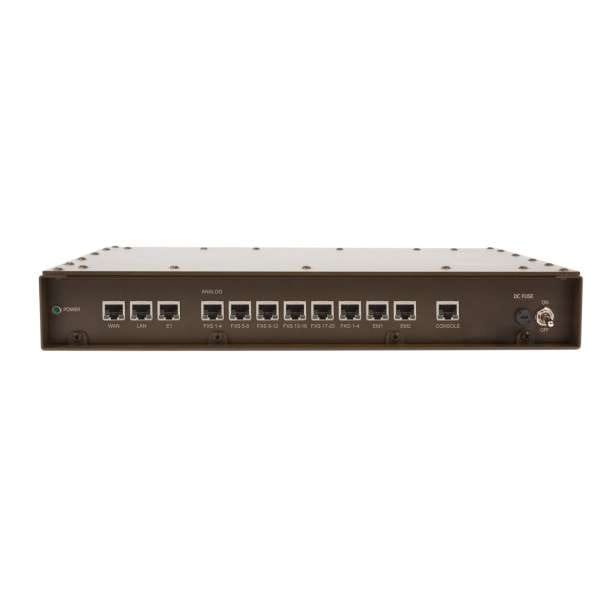

  The LMSB-14.1G is a telephone exchange that can be used as an analog VoIP gateway, VoIP (ISDN) PBX, or voice and data router. Its rugged design allows for operation in harsh environmental conditions. It provides FXS ports for analog telephone devices, FXO ports for connecting to PBX lines, EM interfaces for interoperability with radio systems, and E1 digital lines. The LMSB-14.1G gateway can be connected to a tactical network via a 100 Mbps Ethernet line or through an uplink port based on fiber optic cable equipped with an HMA Expanded Beam connector. A GSM module with four channels is available upon request. The power supply for the LMSB-14.1G can be sourced from any DC supply ranging from 10.5 to 36 V. The LMSB-14.1 telephone exchange can be mounted in vehicles or used at stationary workstations.

Properties

• Robust, compact design that withstands harsh environmental conditions and rough handling
• VoIP gateway with applications in SIP trunking, PBX IP
• trunking, and PSTN access for local IP telephony solutions
• Operating system: Linux, Asterisk software
• WAN interface:
  • 1x 10/100Base-T(X) RJ-45 or 1x FO1-Port
• LAN-Port:
  • 1x 10/100Base-T(X) RJ-45-Port
• FXS-interfaces
  • FXO-interfaces
  • EM-Ports
• 1x E1-Port
• Console-Port
• Power supply: 10.5 – 36 V DC
