Optokon LMSW-E33 Ruggedized 1-10 Gigabit Ethernet Layer 2 Managed PoE Switch

Optokon LMSW-E33 Ruggedized 1-10 Gigabit Ethernet Layer 2 Managed PoE Switch

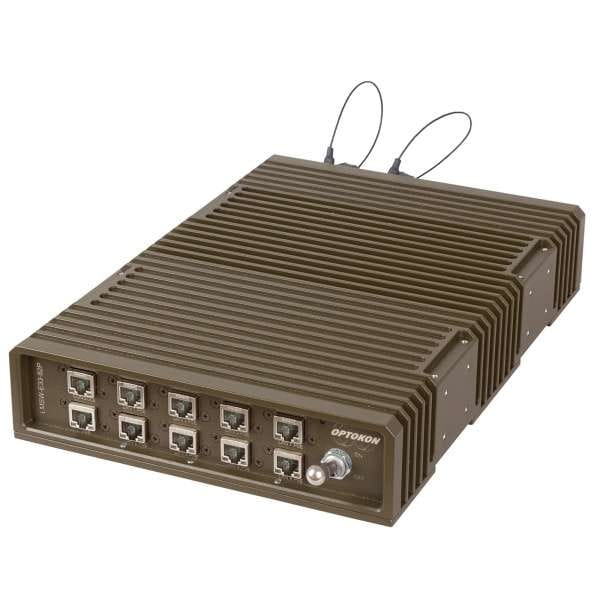

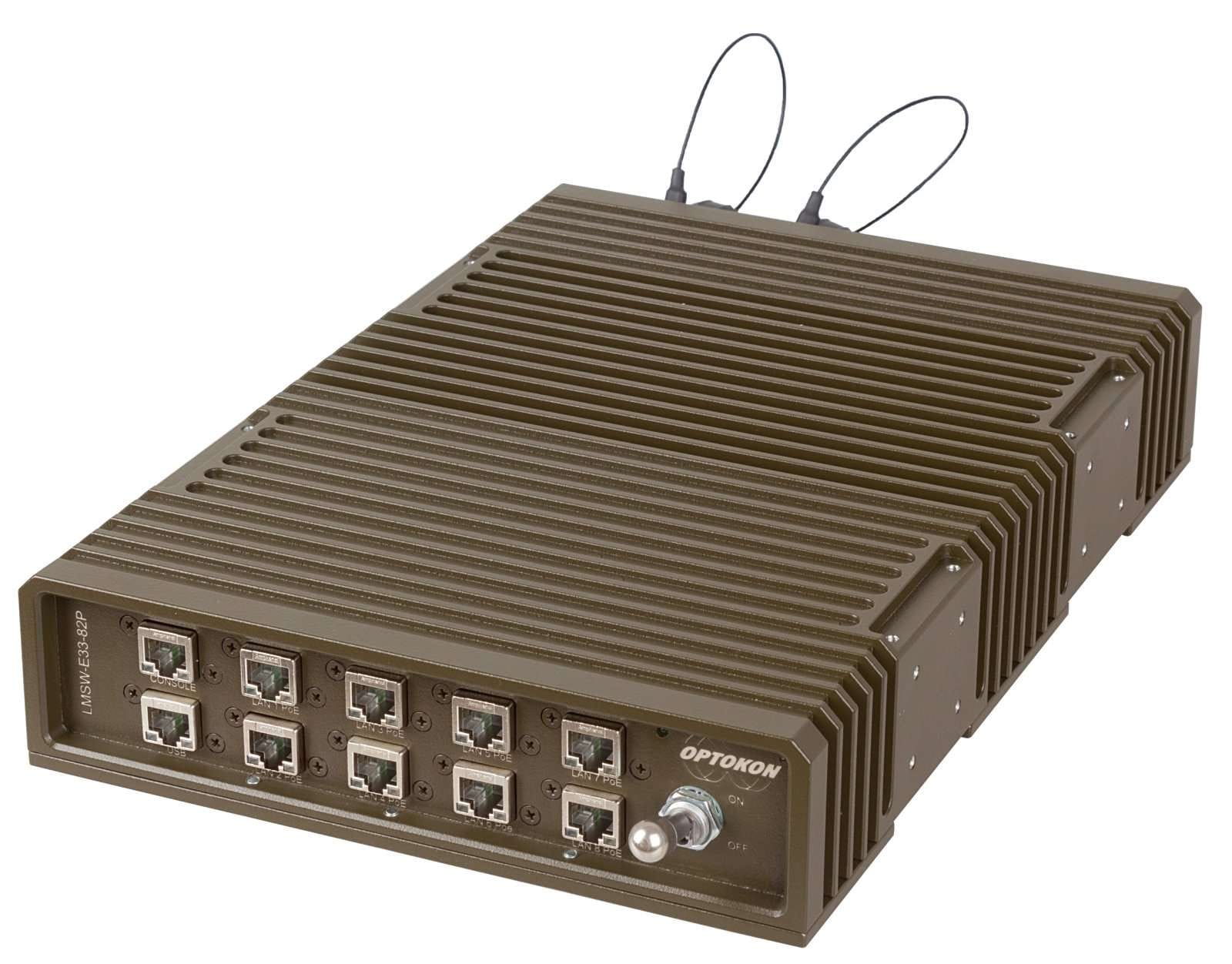

  Rugged 1/10 Gigabit Ethernet Layer 2/3 Managed PoE Switch 2x 1/10G WAN, FO HMA or RJ-45 8 or 24x LAN 10/100/1000Base-T, PoE The rugged OPTOKON® LMSW-E33 switch, based on the Cisco® Embedded Service Switch (ESS) 3300, extends switching capabilities to mobile and embedded networks operating in extreme environments. The flexible, compact form factor of the switch, powered by Cisco IOS® software, provides highly secure data, voice, and video communication to stationary and mobile network nodes, making it ideal for use in harsh environments. The 10G fiber ports are terminated with HMA “Expanded Beam” connectors, enabling tactical network nodes to connect using fiber optic cables. The “Expanded Beam” technology preserves all the advantages of signal transmission over optical lines in field environments under harsh conditions. The switch supports a variety of management functions, including Web UI, MIB, SmartPort, SNMP, Syslog, DHCP server, and SPAN session. The switch is compatible with all common 24 V DC power supply systems and operates in a wide temperature range from -40 to +70 °C. It can be used as a standalone device, or the 19-inch mounting brackets can be used to install the switch in a 19-inch rack. Two switches can be connected side-by-side and mounted in a 19-inch rack.

Properties

• Rugged, compact design that withstands harsh environmental conditions and rough handling
• Cisco IOS-Software:
  • Network Essentials L2-functionality
  • Network Advantage L3-functionality
• 10G-Uplinks
• 1G-Downlinks
• WAN – 2 ports with 1G/10G (copper or fiber)
• LAN – 8 x 1G ports: 8 ports with 10Base-T/100Base-TX/1000Base-T
• LAN – 24 x 1G ports: 24 ports with 10Base-T/100Base-TX/1000Base-T
• HMA fiber connectors
• MRJ (RJ-45) or D38999 multipin connectors
• PoE available on all 8/24 ports
• RS-232 and USB console
• Advanced next-generation Cisco IOS-XE software
• 20 – 40 V DC power supply
• PoE budget: 360 W with PoE functionality
