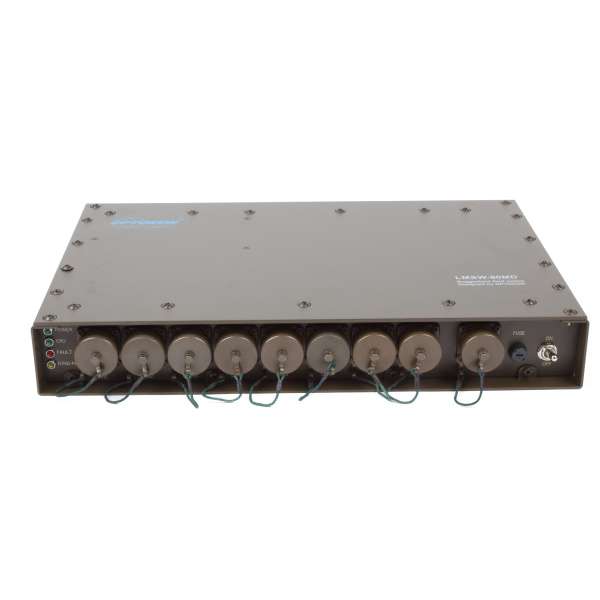

Optokon LMSW-80MD Ruggedized Gigabit Ethernet Layer 2 Managed PoE Switch
8x 10/100/1000Base-T, RJ-45 with PoE+ The LMSW-80MD is a rugged field switch designed to meet the requirements for optical networks in harsh environments. It is intended for use in military tactical networks, for installation in heavy industry enterprises, oil refineries, and mining facilities, or for rescue operations during natural disasters. The switch combines all the advantages: excellent data network performance and a robust design. The Gigabit Ethernet switch LMSW-80MD includes 8x RJ-45 LAN ports. The switch supports a variety of management functions, including STP/RSTP/MSTP and ITU-T G.8032 ring <50 ms recovery time, advanced PoE management features, Layer 2 Ethernet IGMP, VLAN, QoS, security, IPv6, bandwidth control, port mirroring, cable diagnostics, and Green Ethernet. The switch can simultaneously support all common 24V DC power supply systems (redundant power supply). The switch operates in a wide temperature range from -40 to +70 °C. The switch can be used as a standalone device or additionally installed in a 19-inch rack using the 19-inch mounting brackets.
Properties
- Robust, compact design that withstands harsh environmental conditions and rough handling
- 8x 10/100/1000Base-T:
- RJ-45 interface with IEEE802.3af/at PoE output support (30 W per port, up to 180 W)
- Integrated power booster design up to 55 V DC for PoE/PoE+ output
