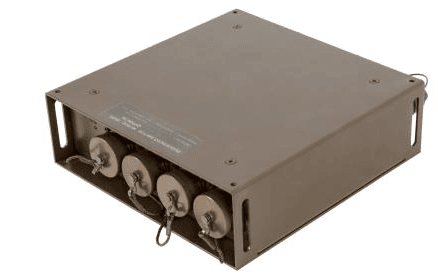

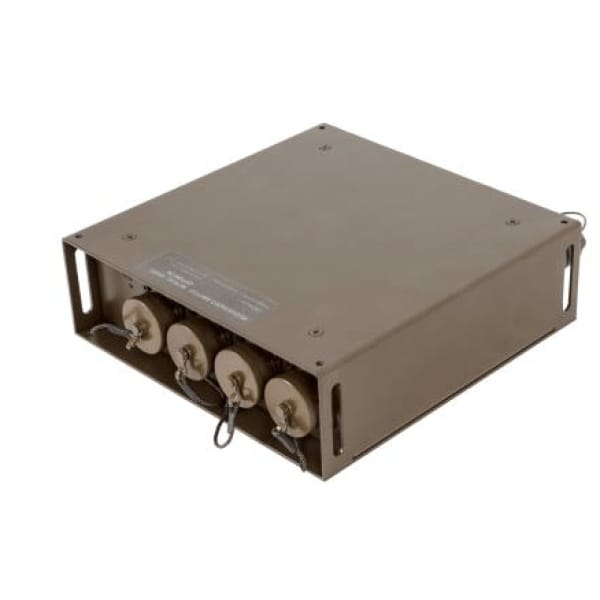

Optokon LMSW-42M Ruggedized Gigabit Ethernet Managed PoE Switch
The LMSW-42M(P) is a compact version of a rugged field switch designed to meet the requirements for optical networks in harsh environmental conditions. It is intended for operation in military tactical networks, installation in heavy industry companies, oil refineries, mining facilities, or for rescue operations during natural disasters. The switch combines all the advantages: excellent optical network performance and robust construction. The Gigabit Ethernet switch LMSW-42M(P) features 4x RJ-45 LAN ports and 2x fiber optic ports. The switch supports a variety of management functions, including STP/RSTP/MSTP and ITU-T G.8032 ring <50 ms recovery time, advanced PoE management functions such as automatic PoE device testing and automatic resetting, Layer 2 Ethernet IGMP, VLAN, QoS, security, IPv6, bandwidth control, port mirroring, cable diagnostics, and Green Ethernet. The switch is classified as Power Source Equipment (PSE) and can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need for additional power cabling. The switch operates within a wide temperature range of -40 to +75 °C.
Properties
- Robust, compact design that withstands harsh environmental conditions and rough handling
- 2x 100/1000Base-X: HMA fiber optic connectors
- 4x 10/100/1000Base-T: RJ-45 interface with support for IEEE802.3af/at PoE output (30 W per port)
- Integrated power booster design up to 55 VDC for PoE/PoE+ output
- Power supply: 10-60 or 48-1 V DC
