Splicing and measurement technology
- Measuring and Testing Devices
Optokon FOI-400AC AutoCheck Microscope
Read more- Automatic analysis
- Embedded Android system
- Integrated IEC criteria
- Automatic reporting in multiple formats
- Data statistics
- Multiple hardware interfaces
- Access via Wi-Fi and Ethernet
- Measuring and Testing Devices
Optokon FOI-400AG – AutoGet WiFi Microscope
Read more- Over 5 hours of battery life
- Complete series of adapters included
- PASS/FAIL indicator
- White LED for illumination
- Measuring and Testing Devices
Optokon FOI-400W – Fiber Optic Microscope WiFi Version
Read more- Wi-Fi and USB connection to smartphone and PC
- Android app and iOS app (Apple)
- Pass/Fail analysis according to IEC 61300-3-35
- Various plug and adapter types available (both socket and plug tips)
- External interface: Mini 5-pin type
- Storage of tested images and reports
- Real-time reporting on-site via smartphone
- Built-in battery
- No external wireless AP or module required
- Non-slip grip design and easy focusing
- CE/FCC certified
- Measuring and Testing Devices

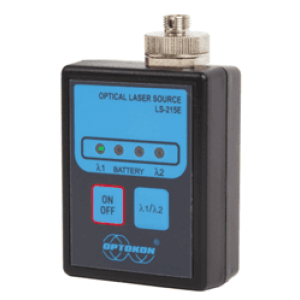

Optokon LS-215E Pocket optical light source
Read more- Dual-wavelength output
- Multimode and singlemode version
- Smallest size, lightweight
- Interchangeable output adapters
- USB port: battery recharging
- Powered by Li-Polymer battery
- Battery status indicator
- Automatic shutdown after 10 minutes
- Measuring and Testing Devices

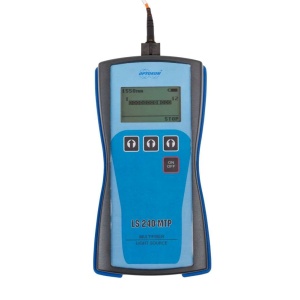

Optokon LS-240-MTP Multifiber Optical Light Source
Read more- Handheld and lightweight
- Testing of multi-fiber MTP/MPO connectors
- No fanout patch cords required
- Single or dual wavelength
- Manual fiber switching or cycle mode
- Remote control via USB
- Large display with backlight
- Powered by Li-Polymer battery with status indicator
- Battery recharging via USB port
- Measuring and Testing Devices

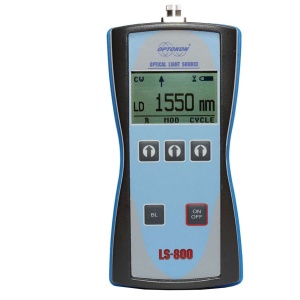

Optokon LS-800 – Light Source
Read more- Standalone light source with up to 4 channels
- Modulation CW, 270 Hz, 1 kHz, 2 kHz
- Automatic wavelength detection mode
- Interchangeable output adapters
- Automatic shutdown, cycle mode
- Measuring and Testing Devices

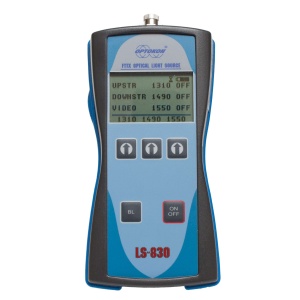

Optokon LS-830-FTTX Optical light source
Read more- FTTH-PON-Tester
- Compact size, lightweight
- Three simultaneously transmitted wavelengths
- Built-in charger
- Rechargeable Li-Polymer battery
- Battery status indicator
- Automatic shutdown
- Measuring and Testing Devices
Optokon MOT-500 Mini OTDR series
Read more- Integrated design, intelligent and robust
- 7-inch LCD screen with anti-reflective coating
- 1 m drop protection
- Fiber connection card test
- 1 m ultra-short dead zone
- Testing through splitters up to 1×64
- 400x fiber microscope
- Remote control function
- Supports multilingual display and input
- FTTX testing with PON networks
- CATV network testing
- Access network testing
- LAN network testing
- Metro network testing
- Laboratory and workshop testing
- Live fiber troubleshooting
- Measuring and Testing Devices

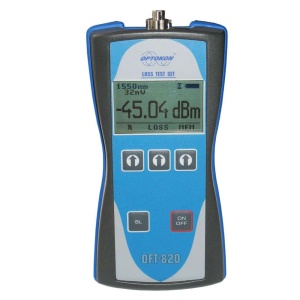

Optokon OFT-820 Loss Test Set
Read more- Portable power meter
- USB probe – accessory for test workstation
- Compact size, lightweight
- High-performance memory with two levels
- SmartProtocol PC software: memory download, report generation
- Data Exporter PC software – data download into Excel spreadsheet
- Modulation detection: 270 Hz, 1 kHz, 2 kHz
- AWD function (Auto Wavelength Detection)
- USB port – for charging the battery, data download, firmware upgrade
- USB probe mode – complete control via simple commands
- Absolute and relative optical power measurement
- Displayed units: dBm, dB, W
- Powered by built-in battery
- Battery status indicator, auto-off function
- Measuring and Testing Devices
Optokon OFT-820-POF series Plastic optical fiber – Loss Test Set
Read more- Portable power meter
- USB probe – accessory for test workstation, complete control via simple commands
- POF-Testing
- Compact size, lightweight
- Easily interchangeable adapters for source and power meter:
- FC-, SC-, ST-, HFBR-connectors
- Universal 2.5 mm ferrule connectors Universal 2.2 mm POF cable
- High-capacity memory
- SmartProtocol PC software: memory download, report generation
- Data Exporter PC software – data download into Excel spreadsheet
- Absolute and relative optical power measurement
- Displayed units: dBm, dB, W
- Powered by built-in battery
- High-contrast display with backlight
- Automatic shutdown
- Battery status indicator
- Measuring and Testing Devices

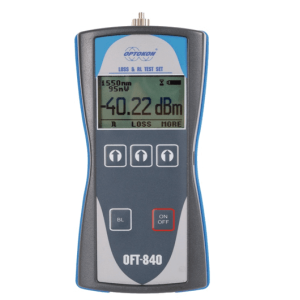

Optokon OFT-840 Loss Test Set with RL
Read more- Optical light source, power meter, and return loss tester
- High-performance memory with two levels
- SmartProtocol PC software: memory download, report generation
- Data Exporter PC software: data download into Excel spreadsheet
- Modulation detection: 270 Hz, 1 kHz, 2 kHz
- AWD function (Auto Wavelength Detection)
- USB port – for charging the battery, data download, firmware upgrade
- USB probe mode – complete control via simple commands
- Absolute and relative optical power measurement
- Displayed units: dBm, dB, W
- Powered by built-in rechargeable Li-Pol battery
- Battery status indicator, automatic shutdown function
- Splicing Devices
Optokon OSC-700 Single Fiber Fusion Splicer
Read more- Core-alignment PAS technology
- Fastest splice and heat-up time in the world: 7 seconds for splicing and 13 seconds for heating
- Redesigned carrying case: easy to carry and can be used as a workbench
- Powerful battery and top-quality electrode: up to 250 continuous splices and heat-ups, and 5000 times the lifespan of the electrode
- Compact and lightweight
- Fully automatic operation
- Splice quality guaranteed at heights of up to 5000 m
- SYSTEMTEST ensures optimal working conditions
- Color LCD monitor
- Pause function, convenient for scientific research
- Storage of 8000 splice results
- USB and DC interface
- 350x magnification for X and Y axes
- Tools
Optokon OSK-01 OPTOKON Splice Tool Kit
Read more- Universal Miller Stripper OPTOKON offers the Miller Stripper as an easy-to-use mechanical single-fiber stripper. It is suitable for both 250 µm coated fibers and 900 µm sheathed, tightly buffered pigtails.
- Pliers A versatile tool for general use.
- Kevlar Cutter The Kevlar cutter allows for effortless shear cuts with high leverage. Made from heavily tempered carbon steel, it features a quick-reacting spring that makes cutting fast and easy.
- Round Cable Cutter A precision tool capable of making accurate cuts into the protective outer jacket.
- Ceramic Scissors The ceramic Kevlar cutter easily slices through tough Kevlar in fiber optic cables with a fast, clean cut. The super-hard ceramic blades last up to 50 times longer than stainless steel blades.
- Fiber Optic Jacket Stripper The precision jacket stripper cuts and removes jackets from simplex fiber optic cables. The dual “V” notch allows for quick removal of the jacket down to the Kevlar reinforcement element.
- Cable Sheath Stripper A precision tool that can cut various buffer tube diameters without damaging the enclosed fiber.
- Cable Cutter A precision tool designed to cut various optical cables.
- Consumables
- Dust Cleaner Removes particles from normally inaccessible areas.
- Isopropyl Alcohol Bottle For cleaning stripped fibers.
- Polyethylene Bottle with Siphon, Isopropyl Alcohol For cleaning stripped fibers.
- Lint-Free Cloth For cleaning stripped fibers.
- Measuring and Testing Devices
Optokon PM-212 Pocket optical power meter – USB probe
Read more- Portable power meter
- USB probe – accessory for test workstation
- Compact size, lightweight
- SM and MM fiber testing, six operating wavelengths
- Absolute and relative optical power measurement
- Internal two-level memory, capacity for up to 100 measurements
- SmartProtocol SW – Create test reports
- Data Exporter – Data download in Excel format
- USB port for:
- USB Probe – Full control via simple commands
- Charging the battery
- Uploading data to the PC – Firmware upgrade
- Built-in rechargeable Li-Poly battery, battery status indicator, automatic shutdown
- Measuring and Testing Devices
Optokon PM-212-CWDM Pocket optical power meter USB probe
Read more- Two Functions:
- Portable power meter
- USB probe – accessory for test workstation
- 18 channels CWDM + 850, 1300, and 1625 nm
- Compact size, lightweight
- Absolute and relative optical power measurement
- Internal two-tier memory structure
- Capacity for up to 100 measurements
- SmartProtocol SW – Create test reports
- Data Exporter – Data download in Excel format
- USB port for:
- USB probe – complete control via simple commands for battery charging
- Data upload to PC
- Firmware upgrade
- Built-in rechargeable Li-Poly battery
- Automatic shutdown
- Battery status indicator
- Two Functions:
- Measuring and Testing Devices
Optokon PM-212-MPO Pocket optical power meter USB probe
Read more- Two Functions:
- Portable power meter
- USB probe – accessory for test workstation
- MPO/MTP connector: 12/24 or 16/32 fibers
- Multimode applications
- Compact size, lightweight
- Absolute and relative optical power measurement
- Internal two-tier memory structure
- Capacity for up to 100 measurements
- SmartProtocol SW – Create test reports
- Data Exporter – Data download in Excel format
- USB port for:
- USB probe – complete control via simple commands for battery charging
- Data upload to PC
- Firmware upgrade
- Built-in rechargeable Li-Poly battery
- Automatic shutdown, battery status indicator
- Two Functions:
- Measuring and Testing Devices
Optokon PM-212-MTP-GE Multifiber optical power meter
Read more- Simple Measurement of Multifiber Connectors
- MTP/MPO Input Connector: 12/24 or 16/32 fibers
- Two Functions:
- Portable power meter
- USB Probe – Accessory for Testing Workplace
- Large scale Ge-Photodetector
- Firmware Upgrade via USB
- Displayed Units: dBm, dB, mW
- High-capacity memory
- SmartProtocol-PC-Software
- Memory Download, Report Generation
- Data Exporter-PC-Software
- Data Download in Excel Spreadsheet
- Battery Charging via USB Port
- Battery status indicator
- Absolute and relative optical power measurement
- Powered by Rechargeable Li-Pol Battery
- Measuring and Testing Devices
Optokon PM-215E Pocket optical power meter – USB probe
Read more- Portable Power Meter or USB Probe
- Compact size, lightweight, display backlight
- New, faster hardware
- Option for Bluetooth or Wi-Fi module
- Supports SM and MM fiber testing
- More than 20 operating wavelengths
- Internal two-level memory for up to 100 measurements
- Comes with its own PM215E application for setting and transferring data
- USB-C port for control, charging, and data transfer
- Built-in rechargeable Li-Poly battery
- Battery status indicator, automatic shutdown function
- Measuring and Testing Devices
Optokon PM-240-MTP Multifiber Optical Power Meter
Read more- Handheld and lightweight
- Simple measurement of multifiber MTP/MPO connectors
- No fan output required
- Measures power in both SM (Single-Mode) and MM (Multi-Mode) fibers
- Measures optical power and optical losses
- Large display with backlight
- Table view or bar graph view for all 12/241 fibers
- Polarity test (with LS-240-MTP light source)
- Measuring and Testing Devices
Optokon PM-800 Optical Power Meter
Read more- Standalone Power Meter
- InGaAs or Si Photodetector
- CW, 270 Hz, 1 kHz, 2 kHz Modulation
- Automatic Wavelength Detection (AWD)
- Changeable Input Adapters
- Absolute and relative optical power measurement
- Cycle Mode
- USB Probe Mode
- High-Capacity Two-Stage Memory
- Measuring and Testing Devices
Optokon PM-830-FTTX Optical power meter
Read more- FTTH-PON-Test
- Three wavelengths measured simultaneously
- Pass-through test
- Absolute and relative optical power measurement
- Large storage capacity for storing measured data
- USB probe mode – complete control via simple commands
- Rechargeable Li-Polymer battery
- Battery status indicator
- Automatic shutdown
- Measuring and Testing Devices
Optokon VSP-03 Visible Pen – Laser Diode
Read more- Optical Light Source
- Handy and compact
- Suitable for identifying single-mode and multi-mode optical fibers
- Includes universal adapter for 1.25 mm and 2.5 mm fiber optic connectors
