OFDU-T Rack Mount Termination Cabinet Optokon Premium
- Termination cabinet
- Extendable and foldable shelf
- Aluminum material – lightweight and low shipping costs
- Up to 144 fiber connections
- Removable top and rear cover allow unrestricted access from the front, back, and top
- Suitable for FTTH use – microtube holder included
- Pre-wired CAPM cassettes include attached fiber pigtails and adapters
- Options available with lockable or secured door
- Durable powder coating – RAL 9006
Description
OFDU-T Rack Mount Termination Cabinet Optokon Premium

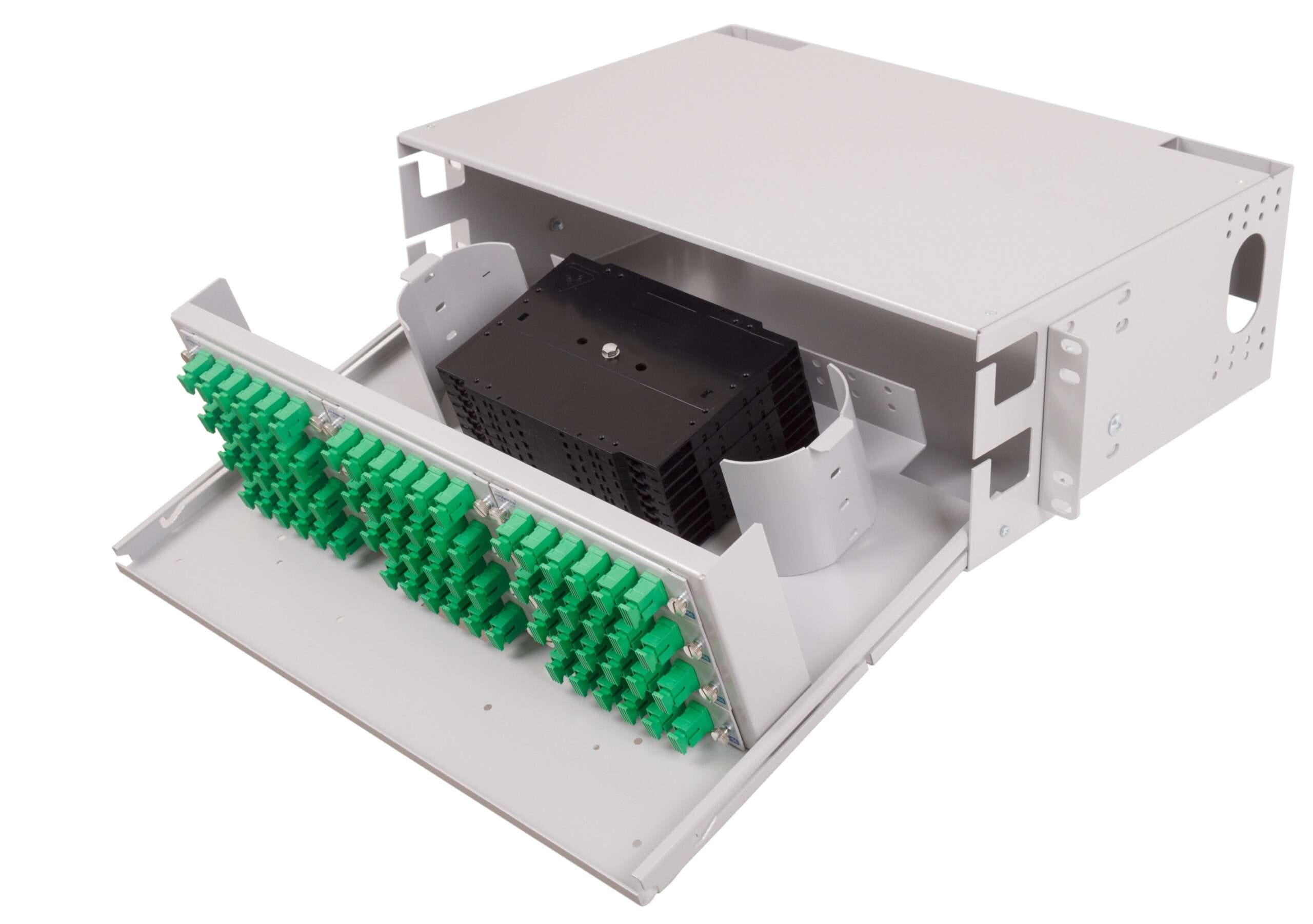

The OFDU-T cabinet is based on universal optical distribution frames. The uniform modular system allows for easy reconfiguration and can be expanded according to the operator’s needs. The OFDU-T provides termination in a convenient housing unit. It terminates up to 144 fibers in a 3U distribution frame and can accommodate up to 12 snap-in coupling fields or pre-wired cassettes. The extendable and foldable shelf allows unrestricted access to termination fields and cable slack from the front, back, and top.
Properties:
- Termination cabinet
- Extendable and foldable shelf
- Aluminum material – lightweight and low shipping costs
- Up to 144 fiber connections
- Removable top and rear cover allow unrestricted access from the front, back, and top
- Suitable for FTTH use – microtube holder included
- Pre-wired CAPM cassettes include attached fiber pigtails and adapters
- Options available with lockable or secured door
- Durable powder coating – RAL 9006
